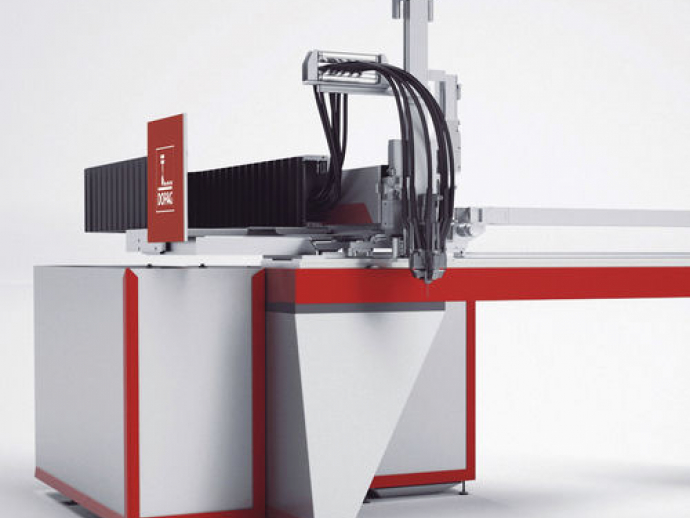

The new linear robot: Automation in a new dimension
- Highly dynamic AC servo and rack drive
- Torsionally stiff high-precision gearboxes and couplings
- Guide systems with maintenance-free, low-wear linear bearings
- Mechanical limit and reference switches
- Energy chain for guiding of pneumatic and electric lines
- Variant 1: Travelling speed: X = 36 m/min; Y = 36 m/min; Z = 24 m/min
- Variant 2: Travelling speed: X = 60 m/min; Y = 60 m/min; Z = 24 m/min
- Max. acceleration: Variant 1: 5 m/s² ; variant 2: 12 m/s²
- Repeatability: < 0.15 mm (ISO 9283)
- Effective load: 20 kg
The new system controller
- Comfortable and efficient operation
- Simple curve programming
- Software-supported 3D programming of components
- Programming via import of NC data (G code editor)
- Remote maintenance and training via modem, Ethernet or TeamViewer
For more detailed information please visit our website or contact us. We are happy to help you.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
Cartesian
|
| Number of axes |
3-axis
|
| Function |
dispensing
|
| Other characteristics |
high-precision
|
| Payload (kg) |
20 - 20
|
| Repeatability (mm) |
0.15 - 0.15
|
