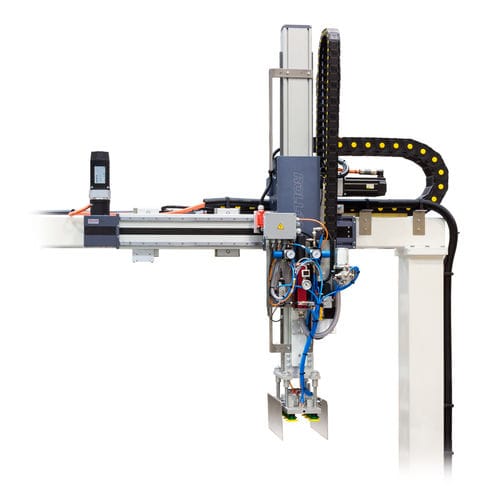

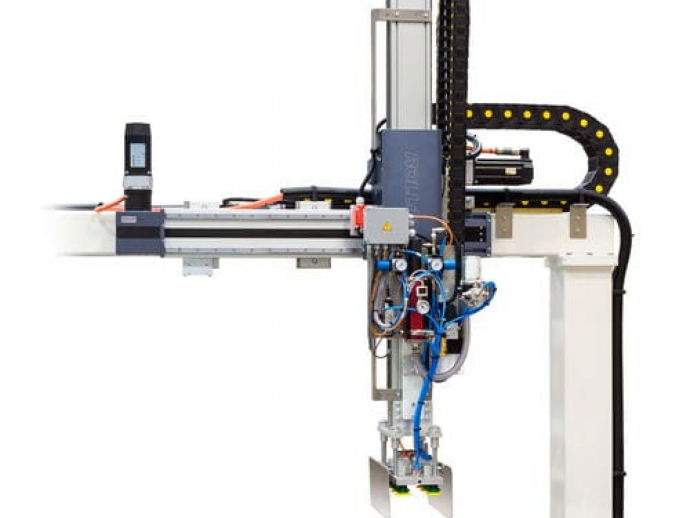

2-axis movement robot with gripper or suction cup pick-up head, ideal for handling packaged products and inserting them in boxes.

• Vertical arm movement axis with 600 mm stroke.
• Horizontal arm movement axis with 600 mm stroke.
• Pick-up head with grippers or three suction cups, adjustable to suit product dimensions.
• Robot fastener column.
• Accident prevention guards.
• Separate electrical cabinet.
• Rockwell Allen Bradley® control PLC with Imanpack operator interface.
• FESTO pneumatic equipment.
• RAL 9010 painting.
• Machine built according to CE Standards.

Speed: up to 30 pick/min
Electronic platform: Rockwell Allen Bradley ®
Product weight: up to 3 kg
Bag size: Width max 400 mm, Lenght max 400 mm, Height max 200 mm
Installed power: 7 kW - Voltage 400 V - 3ph + PE
Compressed air: 6 bar

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	2-axis
Function	packaging handling for assembly pick-and-place palletizing loading unloading dispensing transfer for filling applications machining
Application domain	for the food industry for the pharmaceutical industry for the electronics industry for the automotive industry for medical applications for the cosmetics industry for the plastics industry for the beverage industry for machine tools for foundry applications for small parts for the wood industry for heavy loads
Other characteristics	high-speed high-precision vision system safety low-noise custom
Payload (kg)	0 - 3
Reach (mm)	100 - 6250
