About

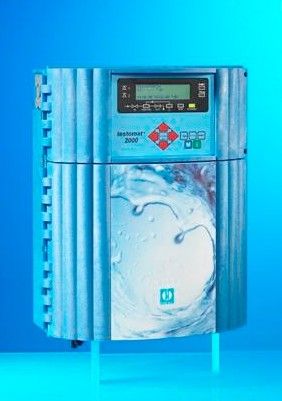

Titromat® KH is used for automatically determining and monitoring the carbonate hardness for high hardness measuring ranges.
Application
alkalinity of open coolant circuits
Measuring range (resolution)
5 - 150 °KH (5)
2 - 60 °KH (2)
Technical Data
Power supply: 230–240 VAC, 115 VAC, 24 VAC all 50–60Hz
Power consumption: max. 30 VA
Protection class: I
Degree of protection: IP 65
Ambient temperature: 10–45 °C, 50 - 104°F
Dimensions (B x H x T): 380 x 480 x 280 mm
Weight: approx. 9.5 kg
Menu languages: German, English, French (others upon request)
Mains water supply
Operating pressure: Dependig on product configuration:
0.3 – 1 bar / 0.3 x 105 to 4 x 105 Pa
1 - 4 bar / 1 x 105 to 4 x 105 Pa
(a pressure reducer (special accessory) should be used from 4 to 8 bar range)
Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter
Water outlet: Hose with 6 mm external diameter/4 mm internal diameter
Water temperature: 10 to 40 °C; 50 to 104°F
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
