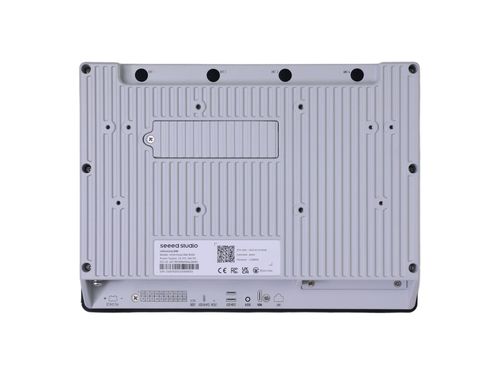

reTerminal DM is a Panel PC, HMI, PLC, IIoT Gateway all-in-one device powered by Raspberry Pi CM4, with 10.1'' IP65 front panel and rich industrial interfaces, and natively integrated with Node-RED and supports Raspberry Pi-based software ecosystem.
A 10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.
Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.
It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.
It’s also equipped with a larger screen, stricter industrial protection levels, and richer industrial interfaces, designed as the advanced version of reTerminal.
Feature
Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design (flexible for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations)
Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
capacitive touch screen
|
| Mounting |
panel-mount
|
| Resolution |
1280 x 800
|
| Processor |
Arm® Cortex®-A72 Dual-core
|
| Other characteristics |
|
| Applications |
|
