About
The reTerminal is a Human-Machine Interface facility, designed in modularization, offered multiple interfaces and components. It is your hand-size, powerful, Raspberry Pi-based all-in-one board, assisting you to develop individual IoT & AI projects and being ready to materialize industrial-level monitor and control functions.
Features
Raspberry Pi All in One Board: Powered by RPi CM4 32GB, integrated with IPS multi-touch screen, dual-band Wi-Fi & Bluetooth, pre-installed compatible Linux system

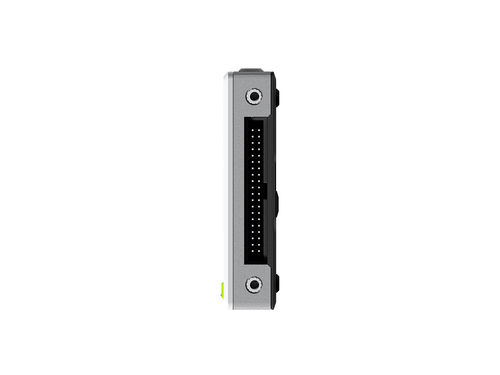

Modular Design: Featuring industrial high-speed expansion interface and 40-Pin Raspberry Pi compatible header

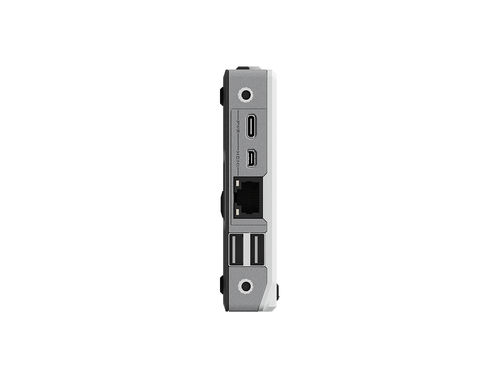

Rich Interfaces & Components: Equipped USB Type-A ports, Gigabit Ethernet, micro-HDMI, micro-SD card slot, MIPI camera interface, light sensor, accelerometer, buzzer, RTC and programmable buttons
Neat Personal Assistance: Enjoy yourself in multiple interested Dashboard or AI projects by Seeed and communities while utilizing built-in sensors and components
Great Industrial Facility: Benefit from stable Raspberry Pi-based operating system, multiple expanded industrial-level connectors, cryptographic co-processor, and official Seeed expansion board reTerminal E10-1
Description
The reTerminal is a Raspberry Pi all-in-one board, powered by Raspberry Pi Compute Module 4(CM4) module, integrated with one IPS panel type multi-touch screen, carried with dual-band 2.4GHz/5GHz Wi-Fi & Bluetooth 5.0, pre-installed Raspberry Pi-based Linux system, provided storage 4 GB RAM and 32 GB eMMC. By designing in modularization, the board is equipped with multiple accessible components and high-speed connectors.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
capacitive touch screen
|
| Mounting |
panel-mount
|
| Resolution |
1280 x 720
|
| Processor |
Arm® Cortex®-A72 Dual-core
|
| Other characteristics |
|
| Applications |
industrial
|
