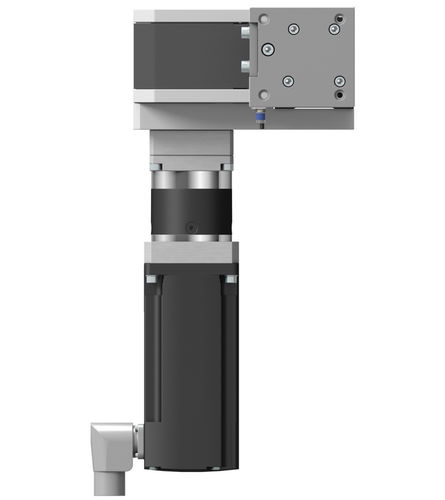

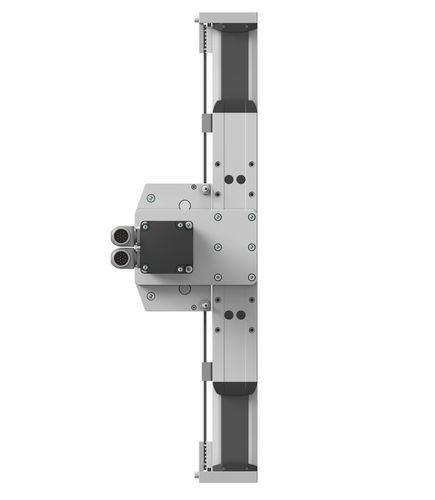

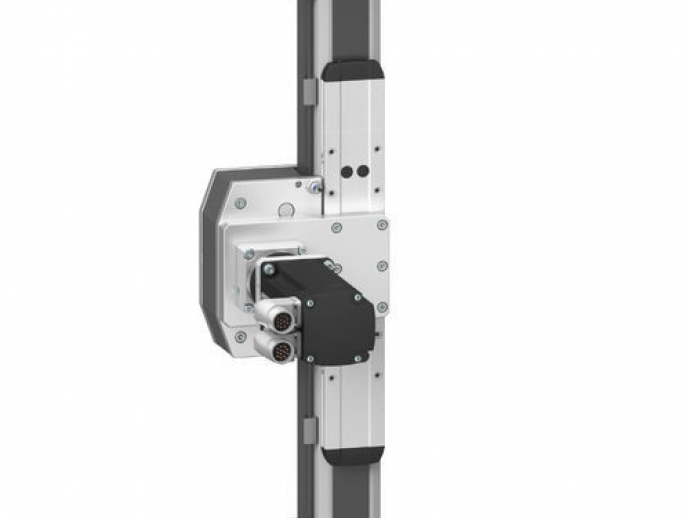

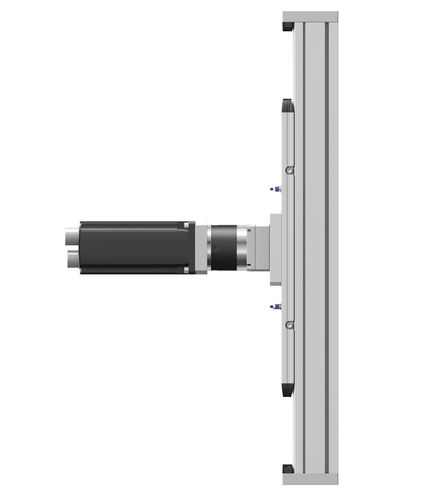

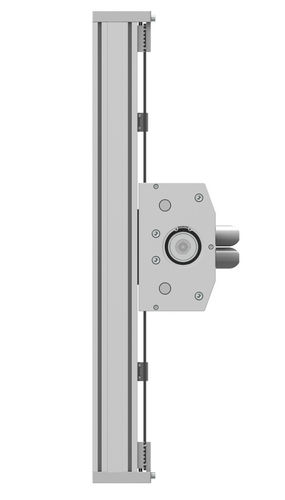

Range of product
- Lexium CAS
Product or component type
- Cantilever axis
Product specific application
- For 1 direction
Load position
- On the side of the profile or on the 2 end plates
Drive type
- Toothed belt
Type of guide
- Ball

Operating position
- Vertical
Function available
- Different types of sensors for the limit switch function
Increased corrosion resistance
Anti-static toothed belt
Protective cover strip for the axis inner parts
Motor and gearbox mounting options
Operating force
- 900 N for Fx
5550 N for Fy
5550 N for Fz
Maximum speed
- 3 m/s
Acceleration
- 50 m/s²
Max. drive torque
- 30 N.m
Max. torque
- <53 N.m for Mx
<487 N.m for My
<487 N.m for Mz
Min. … Max. stroke
- 11…1000 mm
Repeat accuracy
- +/- 0.05 mm
Profile dimension
- 106 x 100 mm
Service life
- 15000 km

Unit Type of Package 1
- PCE
Number of Units in Package 1
- 1

Parameter Name	Parameter Value
Options	with toothed belt drive
