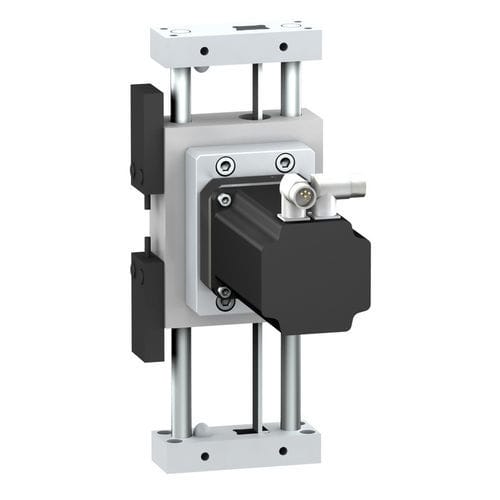

Range of product
- Lexium CAS
Product or component type
- Cantilever axis
Product specific application
- For 1 direction
Load position
- On the 2 end blocks
Type of guide
- Ball

Operating position
- Vertical
Function available
- Anti-static belt
Anti-corrosion version
Different types of motor mounting
Operating force
- 125 N for Fx
210 N for Fy
180 N for Fz
Maximum speed
- 3 m/s
Acceleration
- 20 m/s²
Max. drive torque
- 1.5 N.m
Max. torque
- <5.1 N.m for Mx
<6.7 N.m for My
<7.8 N.m for Mz
Min. … Max. stroke
- 8…200 mm
Repeat accuracy
- +/- 0.05 mm
Service life
- 15000 km

Unit Type of Package 1
- PCE
Number of Units in Package 1
- 1

Parameter Name	Parameter Value
Options	with toothed belt drive
