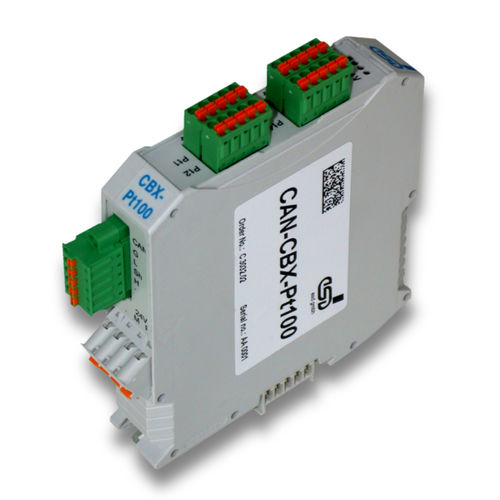

CANopen module with 4 RTD inputs
• 4 temperature sensor (RTD) inputs
• Two- or four-wire connection
• Resistance measurement
• Selectable resolution of sensor resistor inputs: 0.1 °C ... 0.0001 °C
• CANopen profiles acc. to CiA® specification CiA 301 and CiA 404

Approved Reliability and Ease of Use
• Electrical isolation of temperature sensor inputs: all channels are electrically isolated
against the microcontroller circuits and against each other
• InRailBus technology combines high ease of use and proven reliability
• DIN-EN carrier rail mounting (TS 35)

Extensive Setup Options of RTD Channels
• Selectable sample rates: 2.5 ... 1000 SPS
• Wide range of supported sensor types: Pt100, Pt200, Pt500, Pt1000, Pt5000, Ni100,
Ni200, Ni500, Ni1000 and Ni5000
• Linearisation according to NIST by on board microcontroller
• Offset/Gain can be adjusted by the user

Parameter Name	Parameter Value
Bus	CANopen
Applications	automation for thermocouples temperature for RTD for RTD sensors
Number of inputs/outputs	4-I 4-channel
Mounting	DIN rail-mounted
Other characteristics	compact insulated
