FEATURES
Ultra-small, ultra-thin, chip scale DFN package
Compliant with ISO11898-2 standard
Integrate 5V efficiently power supply
I/O power supply range supports 3.3V and 5V microprocessors
High isolation to 3000VDC (TDH541SCANFD 5000VDC)
Bus-Pin ESD protection up to 15kV(HBM)
Baud rate up to 5Mbps
-58V to +58V bus fault protection
>25kV/us CMTI
TXD dominant time-out function
Low communication delay
The bus supports maximum 110 nodes
Industrial operating ambient temperature range: -40℃ to +125℃
Meet AEC-Q100 standards
EN62368 approvalMoisture Sensitivity Level (MSL) 3

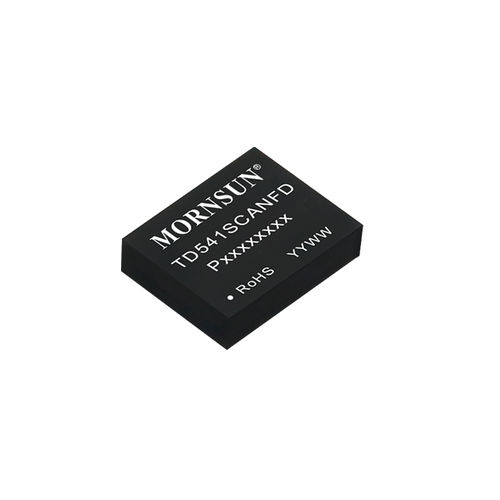

TD(H)541SCANFD is a isolated CAN Bus transceiver, which is compliant with ISO11898-2 standard. Their logic side supports 3.3V and 5V logic level conversion. TD(H)541SCANFD integrate 5 V efficiently power. The TD(H)541SCANFD provide differential transmitting and receiving capability between the CANFD protocol controller and the physical layer bus. It is capable of running at data rates of up to 5 Mbps. The device has the function of series line, over-voltage(-58V to 58V), ground loss protection and thermal shutdown so that it is especially suitable for working in harsh environment.

Parameter Name	Parameter Value
Network	CAN
Applications	data transmission harsh environment
Other characteristics	insulated data
