FEATURES
Ultra-small, ultra-thin, chip scale DFN package
Compatible with the "ISO 11898-2" standard
I/O power supply range supports 3.3V and 5V microprocessors
High isolation to 3750Vrms
Bus-Pin ESD protection up to 15kV(HBM)
Baud rate up to 5Mbps
-58V to +5V Bus fault protection
>25kV/μs CMTI
TXD dominant time-out function
Low communication delay
The bus supports maximum 110 nodesIndustrial operating ambient temperature range:-40℃ to +125℃
Meet AEC-Q100 standards
EN62368 approval

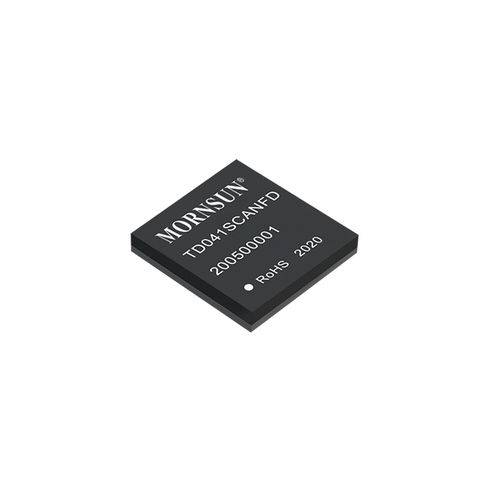

TD041SCANFD is a isolated CAN bus transceiver, which is compliant with ISO11898-2 standard. The TD041SCANFD provide differential transmitting and receiving capability between the CANFD protocol controller and the physical layer bus. It is capable of running at data rates of up to 5 Mbps. The device has the function of series line, over-voltage, ground loss protection(-58V to +58V) and thermal shutdown so that it is especially suitable for working in harsh environment. The rated operating temperature range of TD041SCANFD is –40°C to 125°C.

Parameter Name	Parameter Value
Network	CAN FD
Applications	data transmission harsh environment
Other characteristics	IC insulated data
