USB 2.0 high-speed interface with data rates of 480 Mbit/s
• CAN FD interface with electrical isolation, ISO 11898-2 compliant
• CAN FD bit rate up to 8 Mbit/s
• Powered via USB
• ARM® Cortex®-M7 Microcontroller
• Time stamped CAN messages with a resolution of 1 µsec

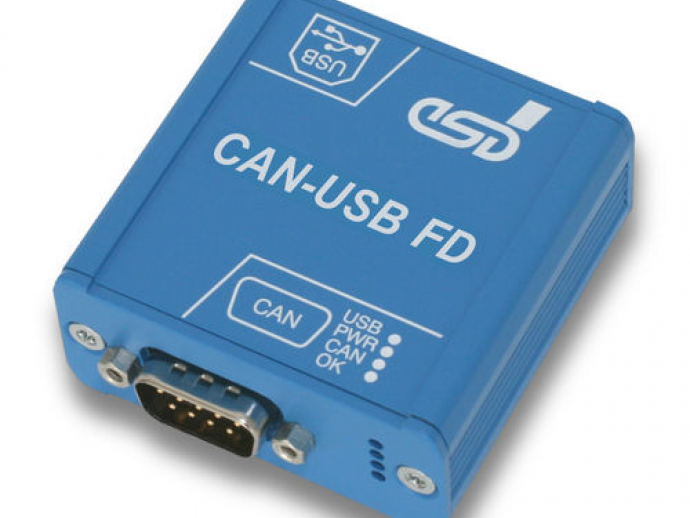

Robust Alu-Micro Case with Status LEDs

• Aluminium case, dimensions 55 mm x 54 mm x 25 mm
• Four LEDs show the state of the module
• USB cable included

Wide Range of Application

• Silent mode support for analysing tools
• Full compatibility with applications written for esd's NTCAN-API
• CANopen® and J1939 protocol libraries are available for Classical CAN applications
• Firmware can be updated in the field

Free CAN tools for fast setup and diagnosis of CAN networks

Parameter Name	Parameter Value
Bus	USB, CANopen, CAN FD
Other characteristics	industrial
