FEATURES
- Small SMD12 size measuring 17.00 x 12.14 x 9.45mm
- Two-port isolation test voltage (2.5kVDC)
- High baud rate up to 5 Mbps
- Operating ambient temperature range: -40℃ to +105℃
- The bus supports maximum 110 nodes
- Set isolation and ESD bus protection in one
- EN62368 approval

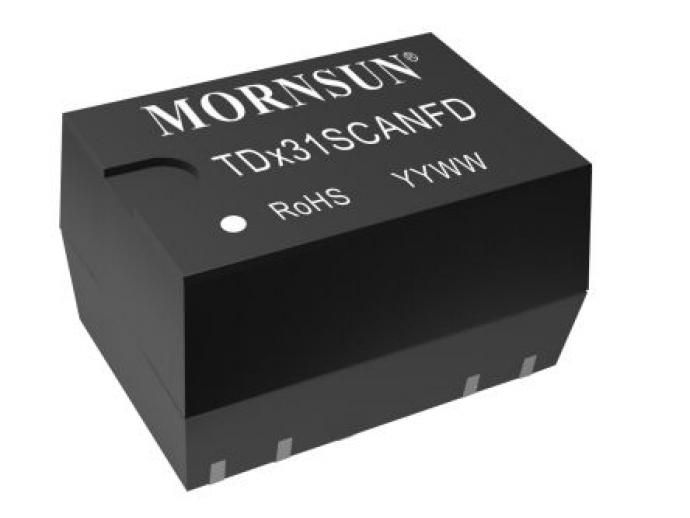

TD331SCANFD/TD531SCANFD series are single-channel high-rate compact-size CANFD (flexible data rate) isolated transceiver modules
with an upgraded version of CAN. The main feature of the isolated CAN transceiver is to further enhance its data transmission performance
that successfully achieves a data transfer rate of up to 5Mbit/s. Also, they can easily be embedded in the user’s end equipment, to achieve
fully functional CAN bus network connectivity. The products are using pick and place SMD packaging technology, thus enabling the use of
fully automated processing.

Parameter Name	Parameter Value
Bus	CAN Bus
Other characteristics	industrial
