FEATURES
 Two-port isolation test voltage(3.0kVDC)
 High baud rate of up to 1 Mbps
 Operating ambient temperature range: -40℃ to +105℃
 The bus supports maximum 110 nodes
 Set isolation and ESD bus protection in one
 EN60950 approval

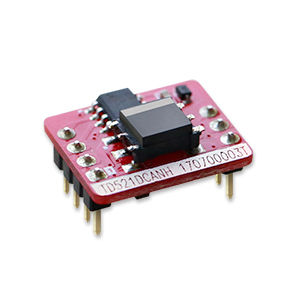

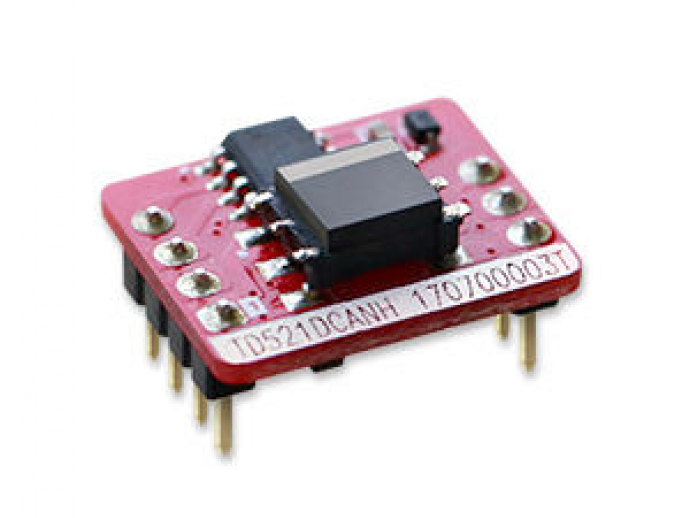

The TD321DCANH / TD521DCANH series’ main function is to convert TTL / CMOS level into isolated CAN bus differential level signals. The use
of IC integrated technology allows for power isolation, signal isolation, CAN transceiver and bus protection all in one single CAN bus
transceiver module, which withstands an isolation test voltage of 3000VDC. Also, they can easily be embedded in the user’s end
equipment, to achieve fully functional CAN bus network connectivity

Parameter Name	Parameter Value
Bus	CAN Bus
