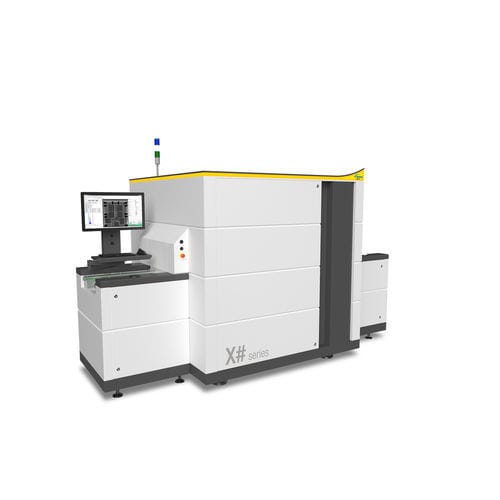

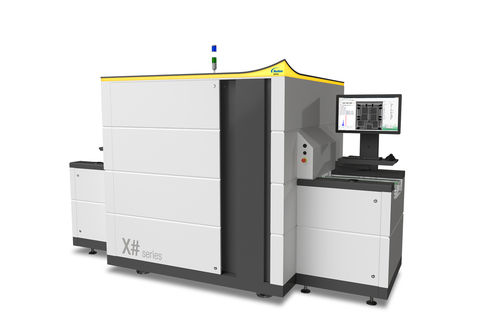

The X#-platform series is an inline automated X-ray system which covers a wide range of AXI applications. It is a flexible platform with very versatile fields of use depending on the application requirements. The inspectable applications range from component level inspection for wire bonds, large SMT boards, high-power electronic modules up to fully assembled modules.

• Flexible AXI system for inline and island of automation configurations
• Microfocus X-ray tube (sealed tube / maintenance free)
• Multiple programmable motion system with servo drives
• Digital CMOS flatpanel detector
• Automatic grey-level and geometrical calibration
• Barcode scanner for serial number and product type selection
• Full product traceability via customized MES-Interface
• • Flexible setup for inline pass through or same-side in/out configuration
• Combination with line scan camera for high throughput
• Auto BCR scanning station (x-y gantry)
• Low-dose radiation filter
• SMT setup for component and solder-joint inspection on PCB
High Resolution setup for chip level assembly
Final Assembly and Test (FATP) setup for complete modules and consumer products
High Power setup for power hybrid/IGBT devices and battery

The platform features up to 4 advanced technologies in one system: Transmission X-ray imaging (2D) with patented Slice-Filter-Technique™ (SFT), Off-Axis technology (2.5D) and 3D SART (Simultaneous Algebraic Reconstruction Technique).

Parameter Name	Parameter Value
Technology	camera X-ray digital 3D scanning 2D electronic CMOS
Operational mode	automatic, automated
Applications	barcode
