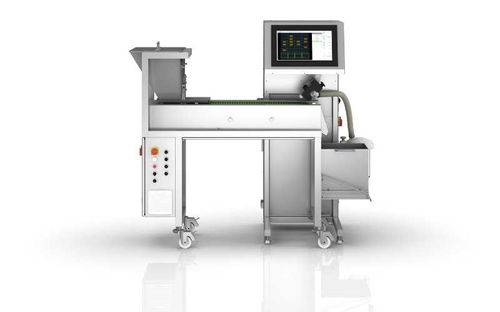

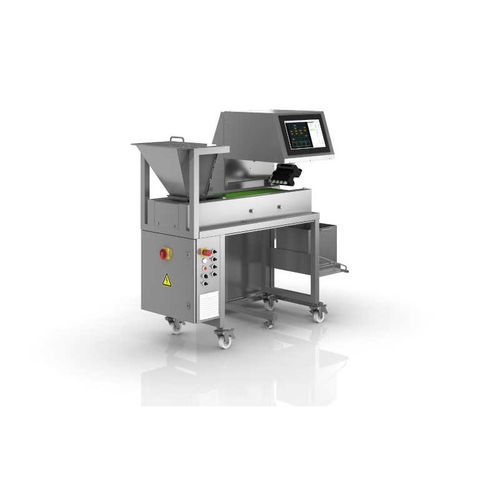

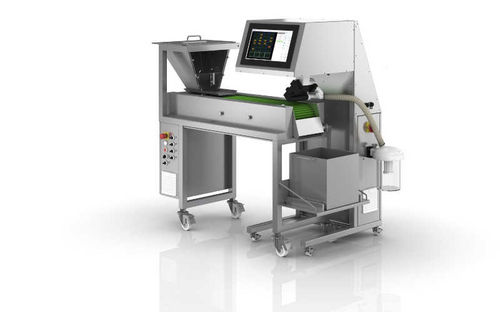

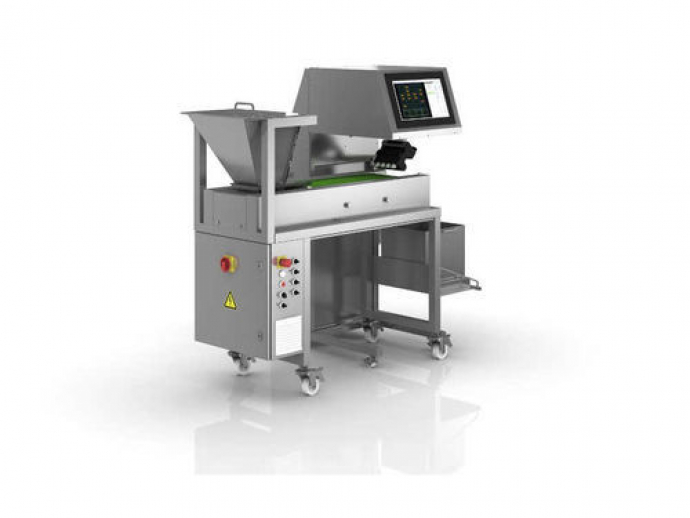

Retrofittable surface inspection for tablets, hard capsules and softgel capsules.
As a complete unit (new system) with an optional conveyor belt or as a retrofit system for your existing inspection or sorting belt from various manufacturers such as Seidenader or Maschinpex.
Our automated camera inspection system provides a secure baseline check for each individual tablet or capsule with automatic sorting/ejection.
By taking multiple pictures of the rotating products, all sides are inspected and evaluated according to adjustable criteria. In this way, product sub-mixes, quality defects, broken tablets, or capsules can be detected.
Product-dependent throughput from 20,000 to 80,000 products per hour.
Suitable for almost all products (even non-rotationally symmetrical): Round tablets, Oblong, Plug-in capsules and Softgel capsules.
Flexible format range from 4 -30 mm
Compact inspection system for flexible use on new or existing roller conveyors for automatic tablet, capsule or softgel quality control.
Inspection features in the basic equipment:
• 360° color control for monochrome products
• 360° color control for multicolor products
• Lengths and widths measurement of the products
• Area measurement of the products
• Detection of stains (light or dark compared to the product color)
• Flaking of tablets from differently colored coatings compared to tablet core
• Automatic ejection of defective products by means of suction
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
camera
|
| Operational mode |
automatic, automated
|
| Applications |
for the pharmaceutical industry
|
| Type |
|
