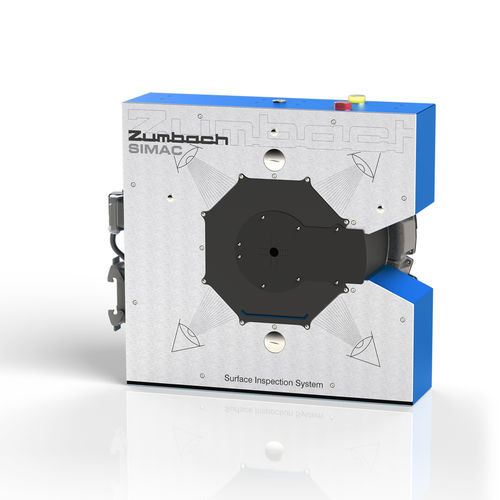

For testing, inspection and detection of surface faults on cables, tubes and hoses

Properties
Continuous quality control
Can be integrated directly into the production line
Fault detection from as small as 0.1 x 0.1 mm
Up to a line speed of 500 m/min
Easy operation, thanks to touchscreen

Benefits
• Easy operation thanks to modern graphical user interface
• Highly compact design
• Clear and crisp image
• LED light system with CCD camera
• Length-related scanning and fault detection

Areas of application
Suitable measuring solution for the production of extruded products such as tubes, cables and hoses. With the SIMAC system, even the tiniest surface faults on the periphery of the product can be detected accurately.

Additionally, the SIMAC is frequently successfully used for process optimization in the following applications:

- Cables
- Water and composite pipes
- Gas and car pipes
- Rubber hoses

Parameter Name	Parameter Value
Technology	camera
Operational mode	automatic
Applications	for pipes for cables
Type	quality for defect detection surface
Other characteristics	in-line
