P374 Intrinsically Safe Color Video Inspection System

The Mini Flexiprobe system sets new standards by offering an intrinsically safe solution that allows successful inspection and reporting within Zone O environments.

Overview

Pearpoint's P374 IS is an intrinsically safe pushrod system certified to EEX ia IIC T6 for Zone 0 Hazardous environments such as vessels or pipework within the chemical and petrochemical industries, landfill venting systems, natural gas supply infrastructure, etc. The surface equipment is IP55 rated allowing this system to be used in most types of weather conditions. The P374 IS system is compact and fully integrated making it very easy to transport around.

FEATURES / BENEFITS:

25mm (1”) to 100mm (4”) Pipe Inspections

61 Meters (200 ft) of semi rigid rod

Intrinsically safe system certified to EE x ia IIC T6 for Zone 0 Hazardous environments

True portability, weighs only 21kg (46lbs) and operates from a 12V DC external supply

Composite video output/input allowing connection to a video recorder or external monitor

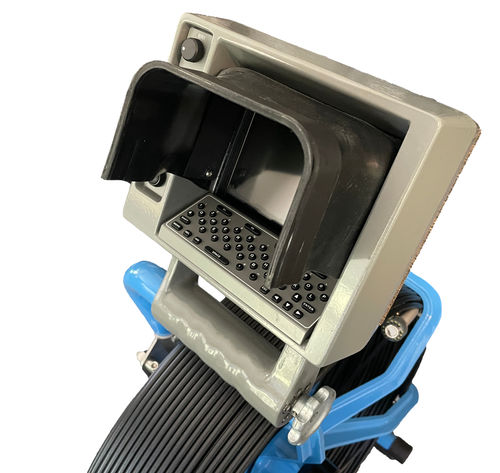

Integrated high resolution 6.4” Color LCD allowing improved image recognition, retractable sun visor built in reducing the effects of sunlight on the screen

QWERTY Keyboard for text annotation on site, with 9 pages of user defined text available, 9 programmable user defined fields enabling faster text generation

A truly waterproof system for operation in most weather conditions, protected to Environmental spec IP55

CMOS camera technology allowing increased operating time through low power consumption

Maintenance free, White LED’s for increased performance and reliability

Parameter Name	Parameter Value
Technology	camera CMOS
Applications	for pipes
Type	video
Other characteristics	LED
