Molds owns high cost in injection molding process, in each cycle, mold affords a high risk of experiencing extreme damage because of the molded parts or slides sticking. The quality of mold directly affects the injection molding products. Traditional mold protection system simply adopts visual verfication technology to detect if any damages or problem occurs, however, this solution is seriously bothered by environmental interference, such as, light changes. LNC MI-5000 is empowered with advanced technologies to become an intelligent system which is able to detect and to make judgement of defect or failure like humanbeings does.

MI-5000 Software Function
• Multi-area Monitoring Setting
• Sensitivity Setting of Each Monitoring Area
•  Alarm and Warning
• Supports 2 Cameras Monitoring
• Sending Alram to Stop False Production
• Non-monitored Areas Masking Function

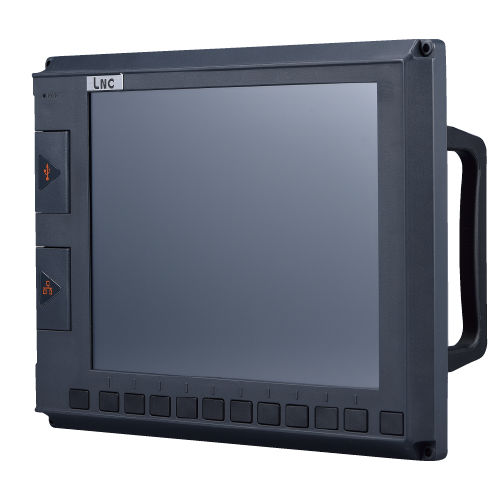

Hardware
Display: 10” Touch
Storage: 32G MicroSD
Network: 100/1000 Mbps(RJ45)
USB Port: 2
Camera Connection: Standard 2
Protocol: TCP/IP
I/O: 3 input points / 2 output points

Software
Language: CHT/CHS/EN
Parameter Setup: Camera function settings
Qty of Modules: 1 camera can set 3 modules
Module Function Settings: Zoom in,zoom out,1:1,move,take photo,add,sensitivity,copy,previous point,next point,delete point,etc
Report Export: Operation and inspection history
Monitor Page: 1. Multi-camera switching display 2. Display inspection results 3. Display I/O immediately

Industrial Camera
Resolution: 1.2 million pixels
CCD Size: 1/3” CCD
FPS: 30FPS
Interface: GigE
Lens: f12mm-36mm zoom lens

Accessories
Camera Holder: Ø8mm_1/4 20-6UNC
Light Holder: Ø8mm_M6
Light Source: Standard 2 white lights

Parameter Name	Parameter Value
Technology	camera
Type	quality
