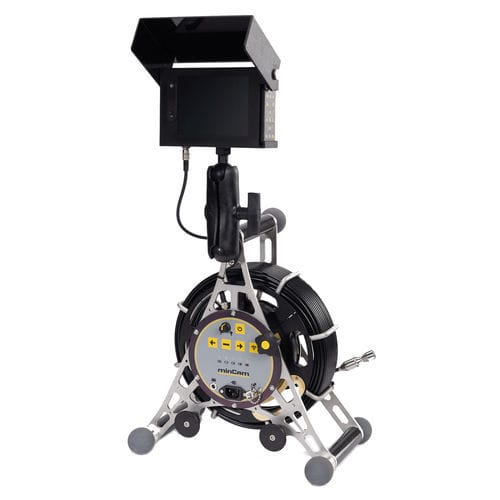

The mC15 inspects pipes in the range from 25 to 125 mm in diameter.
The mC15 inspects pipes in the range from 25 to 125 mm in diameter. The complete camera system ensures an optimal perspective. Individual area of application in buildings and industry.
• Cable diameter 25 – 125 mm
• Curved from 40 mm
• Color camera head 18 mm
• Flexible push cable 30 m
• Sunproof 5.6“ monitor

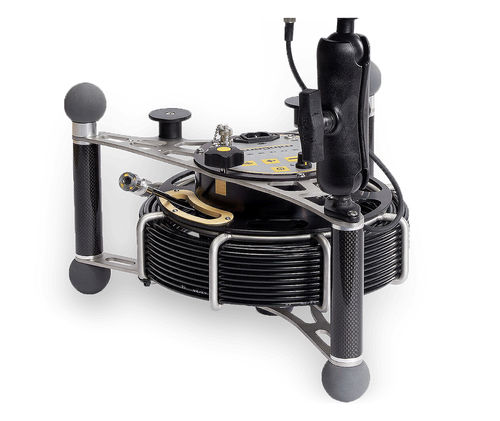

• Winch made of VA and carbon
• Control unit with function keys for camera head control
• Stepless light control
• BNC Video Out
• Battery life 3 hours
• Internal power supply with 100 to 240V
• Meter counter with electronic video overlay

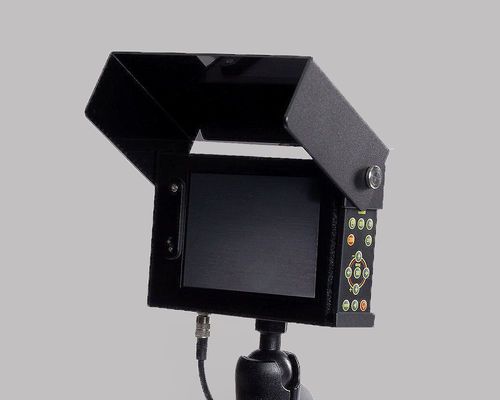

• Sunproof 5.6" TFT-LCD monitor in 4:3 format
• Digital storage of videos and photos on SD card
• Data inscription optional

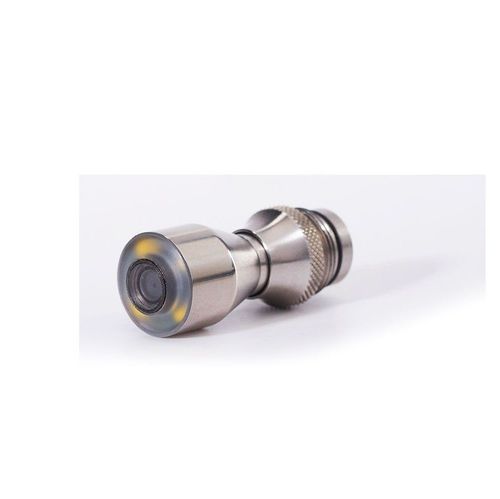

• Axial camera with high-resolution color camera module
• With 18 mm diameter for pipes from 25 mm
• Water resistant to 3 bar
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
camera
|
| Operational mode |
automatic
|
| Applications |
for pipes
|
| Type |
video
|
| Other characteristics |
high-resolution
|
