8tree’s dentCHECK tool is approved and recognized by all major aerospace OEMs. It is slashing dent-mapping/reporting times by 90%, while delivering unprecedented levels of measurement accuracy and SRM-compliant answers. dentCHECK is revolutionizing the speed with which airlines can inspect airframe damage caused by GSE collisions, bird strikes, hail or damages occurred in production. This reduces Turn-around-Time (TaT) and boosts operational efficiency.

The Right Tool for the Job

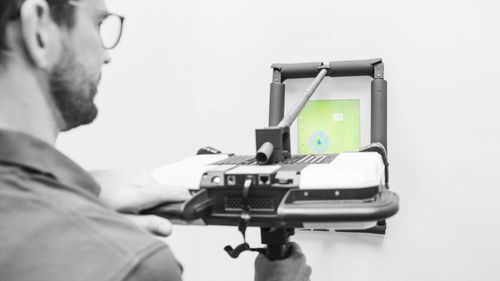

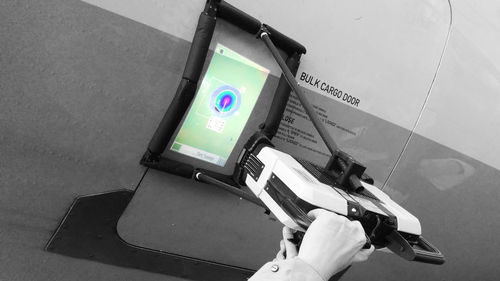

Portable and cable-free, dentCHECK is suitable for inspecting damages at the line, in the hangar, on the tarmac, or at an AOG situation. The tool measures dents, bumps, lightning strikes and blend-outs on metallic or on composite surfaces.

Bring the Airplane into the Office
Streamline your record keeping with 8tree’s Damage Reporting Tool (DRT). It allows engineering teams to quickly create detailed SRM-compliant damage reports using inspection results from dentCHECK – all in less than 5 minutes! Easily measure critical distances, add coordinate symbols, or obtain cross-sections of damages with the DRT. This digital report can be submitted to OEMs as an auditable record.

Accurate and Consistent
Measurement uncertainty of +/- 0.05 mm (Z-direction) and +/- 1 mm (XY-direction). Measurement performance validated time-after-time, resulting in approval of tool by several major aircraft OEM.

Fully Integrated & Networked
Self-contained and portable. No external power supply, or processors required to use the tool. Network your dentCHECK with 8tree’s latest 8cloud platform to share results easily.

Parameter Name	Parameter Value
Technology	camera
Applications	for the aerospace industry for the aeronautical industry
Type	measurement surface damage detection
Other characteristics	portable
