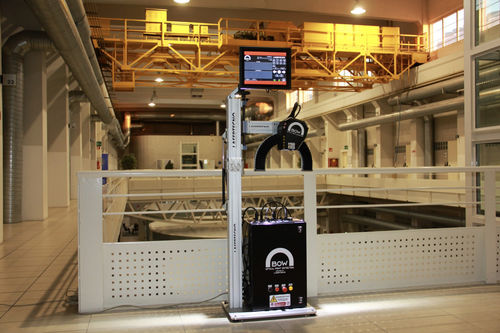

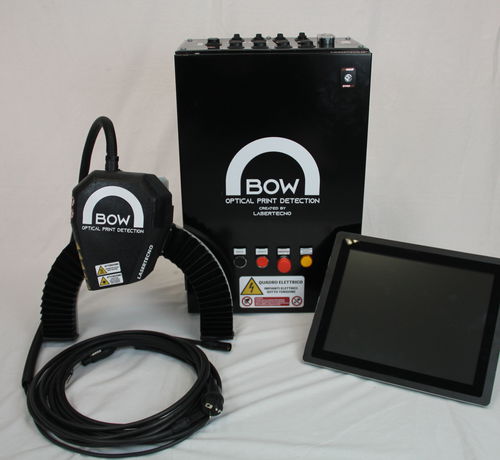

Camera inspection system BOW

Camera inspection system BOW

Camera inspection system BOW

About


Device details :
• Product maximum speed up to 1200 mt/min.
• Can detect on every product’s diameter.
• BOW - Optical Print Detection, can detect :no marking, over-marking, marking changes, font cuts, ink stains on
marking and unmarked product.

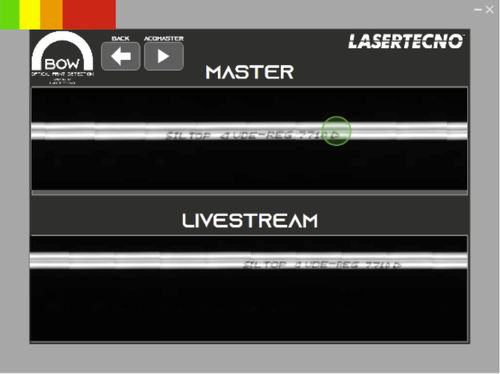

• Easy livestream of the actual mark/print allows the operator to set-up the printer and start the line production
without effort.
• Can detect every black or white coloured paint/mark on every single colour product (Other paint/mark colours need a customised set-up)
• Easy detection of the mark/paint on the product thanks to the 180° or 360° motorised optical device (our patented tecnology* allows BOW - Optical Print Detection to rotate around the extruded product in order to set the Optical device up to intercept the mark/print while the product itself rotate)
• Little training required ( initial operating instruction after installation requires 30 min )
• Various CAQ software are connectable.
• Internal/external Database allows the operator to recall recipes for an easy set-up.
• No user influence on default optical focus as well as default optimised, intelligent and homogenous lighting.
• Green, yellow, orange and red light signals alert for non conformity.
• The software enables various operator level settings (production, administration, service etc.)
• Standardised individual components lead to supply security and therefore a short delivery period.
• Optical hardware are protected with tempered glass which is easy replaceable and easy to clean.
• Plug In connectors easy to connect for an easy installation or transportation.
• Monitor touchscreen console can be placed far from the device.



PARAMETERS

Parameter Name Parameter Value
Technology
  • camera
  • optical
Operational mode
automatic
Applications
  • for pipes
  • for cables
  • for wires
  • marking length
  • for cable marking
  • for fiber band marking
  • for extruded products
Type
  • for quality control
  • measurement
  • surface defect
  • fiber quality control
  • air-coupled
Other characteristics
  • fast
  • custom
  • computer-controlled
  • high-resolution
  • non-contact
  • in-line
