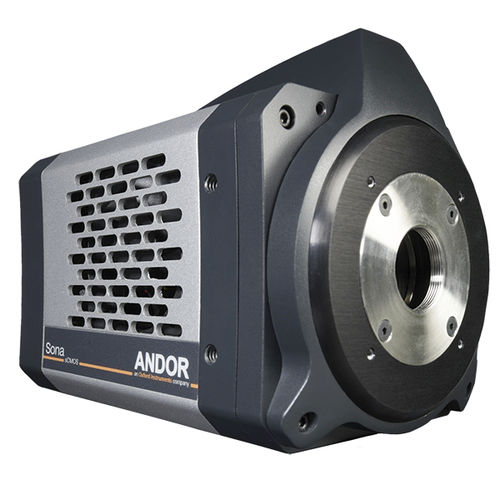

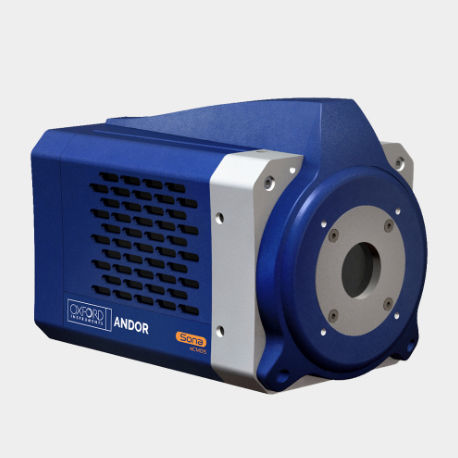

Sona is Andor’s latest high performance sCMOS camera series, specifically for life science imaging applications. The new and enhanced Sona-6 Extreme is now more sensitive and faster! An exceptional combination of sensitivity, speed and resolution for optimal imaging performance across many applications.

• 95% QE & -45 °C cooling - most sensitive back-illuminated sCMOS available

• Up to 135 fps full frame – follow dynamic processes without smear

• > 99.7% linearity – superb quantitative accuracy across full dynamic range

• 6.5 µm & 11µm pixel size options – suit most magnifications & applications

• SRRF-Stream+ technology - resolve detail to ~100 nm from a normal microscope

Sona is Andor’s latest high performance sCMOS camera series, specifically developed for life science imaging applications. All Sona models feature the latest back-illuminated sCMOS sensor technology with 95% Quantum Efficiency (QE). Sona exploits Andor’s technical know how as a leader in sCMOS technology to extract the very best from these new generation sensors. Sona is the only back-illuminated sCMOS camera with a permanent vacuum technology for unmatched longevity and deepest cooling. ​

Parameter Name	Parameter Value
Applications	for scientific applications
Technology	high dynamic range
Function	vision processing
Spectrum	UV
Sensor	sCMOS
Interface	USB 3.0 CoaXPress
Resolution level	2048 x 2048
Resolution	4 2 Mpx
Other characteristics	high-sensitivity high-performance fluorescence low-noise
