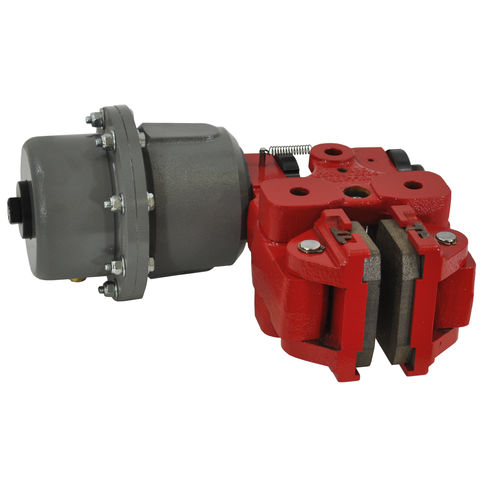

The Hilliard A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12" and is offered in 4 sizes to accommodate a ½", 1", 1-3/16", and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left-handed designs eliminating the need for multiple part numbers.

The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are offered in multiple sizes to meet the needs of our customers. The T200 thruster produces a maximum braking force of 950 pounds at the maximum operating pressure of 80 psi.

Applications
Pulp & Paper

Type: Pneumatic Applied / Spring Released

Parameter Name	Parameter Value
Type	caliper disc
Operation	release spring, with pneumatic release
Braking force	4,226 N
