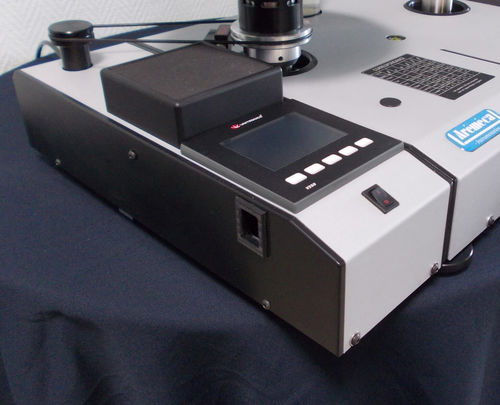

This option OP0301 is compatible with all our dead weight testers range BH2 or BA2. It allows high precision calibration.

The OP0301 option is a PLC/Computer with several functions :

> Assists the operator
- The automaton assists the operator in the calibration process by taking into account the various criteria defined by the operator such as : the acceptable deviation, the number of measurement points desired, gravitation, the unit of measurement etc.
- It will inform the operator of the masses to be applied to generate the desired pressure at each measurement point
- The drive of the set of weights is motorized in order to improve the stability of the balance during measurements and to limit operator manipulations.
- The automaton, indicates to the operator the balance of his balance thanks to the dynamic visualization of the position of the piston.

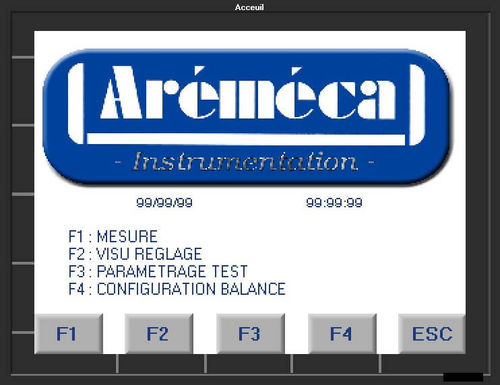

- The screen display can be done in several languages: French, German, Italian, Spanish

> Ensures traceability of measurements
- The automaton will calculate the pressure generated by the scale at time T according to the different sensors: Temperature, Atmospheric pressure.
- It will record the results of each measurement and will indicate to the operator whether the result is considered "acceptable" or "deviating" from the criteria defined by the operator.
- The automaton allows complete traceability since all the calibration results will be recorded and then exported to an Excel-type spreadsheet for writing the inspection report.
- It allows to convert the results in different units like: PSI, kg/cm2 etc… using the same set of main weights in Bar.

Parameter Name	Parameter Value
Type	compact
Input/output	with integrated I/O
Network	RS232
Other characteristics	with touch screen
Applications	for calibration
