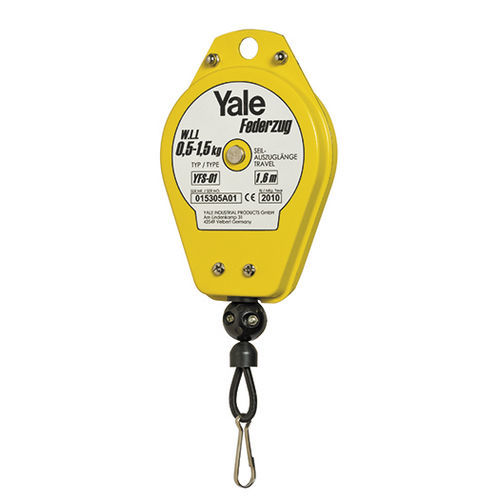

Spring tensioners are designed to retract the cable when no force is applied. An amount of downward force must be continually applied to keep the suspended object at its extended position.
The torque output of the rewind spring increases as the cable is extended, retracting the suspended object to the uppermost adjusted position when released.

Features
Stamped steel construction, powder-coated housing.
Automatic drumlock according to DIN 15112.
Additional hanger for the attachment of secondary safety chains according to DIN 15112.
Rope guide made of wear-resistant nylon for reduced wear of rope and body.
Declaration of EC-conformity.
Adjustable cable stop to fix the spring tensioner in the desired position.
Series YFS-A with ratchet-locking device. Locks the outretracting rope for unrestricted tool movement. This device can be switched ON/OFF, so the spring tensioner can be used with or without the ratchet-locking device.
Applications
Pneumatic power-tools, assembly tools, paint spraying guns, riveting machines, nut runners, grinding and polishing machines.

Parameter Name	Parameter Value
Applications	cable
Type	spring-loaded
