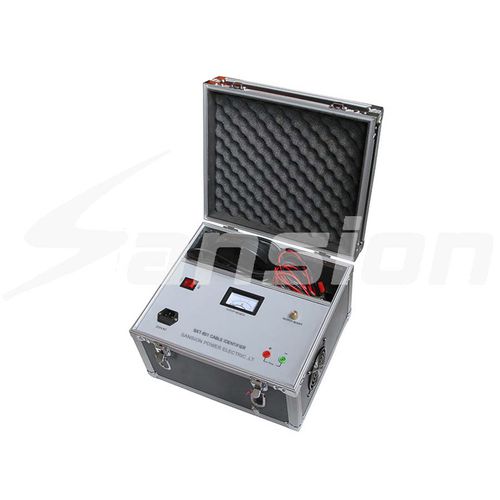

Cable Identifier SXT-601

SXT-601 Cable Identifier is designed to identify a special one within a group of cables during the power cable’s setting up, moving, maintaining and faults processing. It’s suitable for all kinds of HV & LV cables.

♦ Can identify energized or de-energized cable.

♦ The system is composed by signal transmitter, receiver, transmit clamp, receive clamp and some connection leads.

♦ Large power current pulse output.

♦ On-site receiving signal is clear.

♦ Light weight, high sensitivity and anti-interference ability.

♦ To identify needed cable with or without electric.

♦ Accurate and fast identifying.

♦ Reliable protective circuit.

♦ Large diameter clamp suitable for all kinds of section surface cable.

♦ Build-in large power insulated transformer, there is no any electrical contact between mains supply and user.

Transmitter:

♦ Max. pulse peak value output current: 20A

♦ Pulse repetition rate: 1 time/2 seconds.

♦ Power supply: AC220V(±10%)，Power:100W

♦ Weight: 8kG

Receiver:

♦ Sensitivity: 40dB

♦ Power supply: 2 X 5# batteries

♦ Weight: 0.2kG
