Made in SPAIN

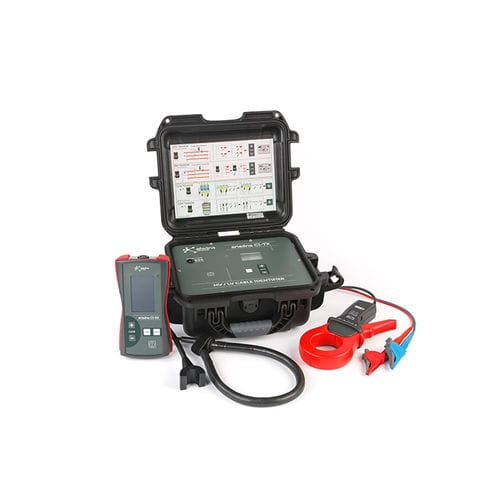

The ARIADNA CI is an advanced digital tool, with a simple and effective usage procedure. It enables electrical cables to be identified, energised or not, between a set of conductors in places such as: manholes, ditches, enclosures, etc.



ARIADNA CI Main Features:

identifies:

energized MV cables
energized LV cables
de-energized MV and LV cables

Works with:
Single phase conductors (shielded or unshielded)
Three phase or 3 phase + neutral conductor
Signal injection by:

Direct connection to cables o Signal induction through toroidal clamp (optional)

Detects active signal’s Amplitude and Polarity
Maximum cable length > 10km (direct connection)
Rechargeable Li-ion battery on transmitter (CI-TX):
>24h at level 2 (up to 4) of transmission power

ARIADNA CI MV & LV Cable Identifiers

In electrical maintenance works, in order to cope with safety standards, it becomes necessary to identify de-energized cables unambiguously prior to its manipulation.

Cutting the wrong cable may result in the following consequences:

personnel live threat
power supply failure

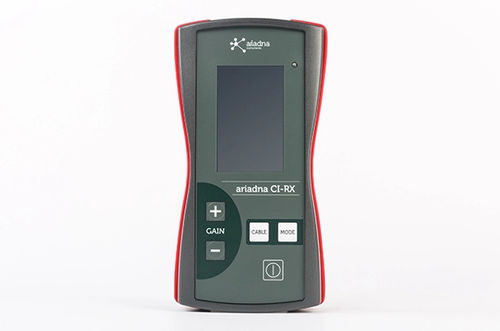

ARIADNA CI cable identifier is an advanced, yet simple to operate, digital tool.

It helps users to easily identify de-energized and energized MV&LV cables electrical

cables among multiple conductors, in trenches, manholes, panels, aerial/underground conversions, etc.
