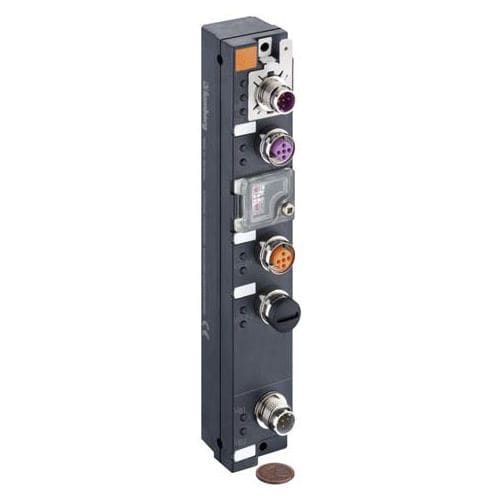

Bus coupler 0940 PSL 601

About


Order No.:87058
Type:0940 PSL 601
Description:LioN-Link BusHead IP 67 bus coupler module, Profibus-Slave, for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection. Standard: Bushead for LioN-Link standard modules.
Availability:available
Diagnostics Diagnostics according to Profibus specification, diagnosis for communication status, module breakdown and periphery faults in the Link system
Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration.
Color of housing black
Product characteristics Vibration resistance, Oil resistance
Classification
Belden class LioN-Link BusHeads
Belden brand Lumberg-Automation
Mechanical data
Weight 200 g
Dimensions (W x H x D) 30 mm x 182.4 mm x 40.4 mm
Environmental conditions
Environmental temperature -10 ºC ... 60 ºC
Degree of protection (IP), mounted IP67
Materials
Housing material / Molded body PBT
Approvals
Approvals UL
Bus system
Fieldbus system Profibus DP-V0
Bus Connection M12, B coded
Number of contacts 5
Device Indentification 0A36 hex
Transmission rate 12 Mbit/s
Address range 1 dec. ... 125 dec.
Rotary address switches 1 dec. ... 99 dec.
Default address 99 dec.



PARAMETERS

Parameter Name Parameter Value
Type
electronic
Applications
  • bus
  • I/O
  • PROFIBUS-DP bus
Other characteristics
IP67
