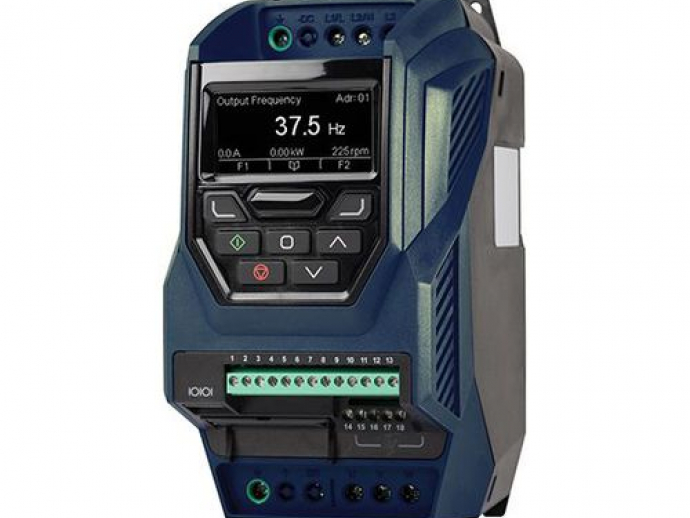

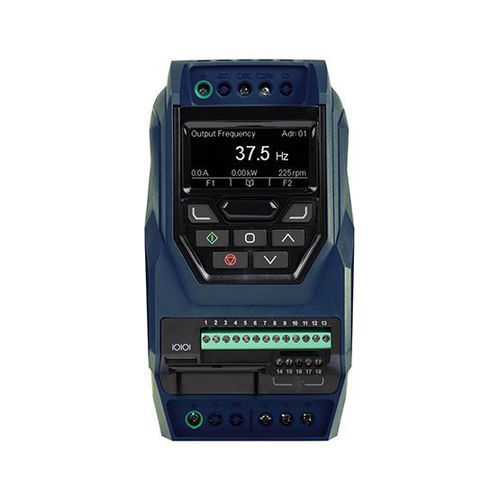

PACMotion VFDs are integrated, rugged and modular AC variable frequency drives designed for a range of industries, including water/wastewater, metro, automotive, mining, food and beverage, packaging, oil and gas, discrete manufacturing and modular machine designs.

Features

Native PROFINET System Redundancy support eliminates need for an intermediary device, reducing costs
Rugged enclosure allows drives to be mounted without a control cabinet
Built-in Safe Torque Off (STO) support saves development and commissioning time by allowing integrated safety and standard applications
Easily and seamlessly integrates with PACSystems RX3i applications
Built-in keypad
Modular design allows individual units to be connected and controlled with a single keypad

Specifications

Connection Type
480VAC 3 Phase

Enclosure Design
IP20

Motor Power
5HP (4 kW)

Interference Suppression on the Input
Class C2

Option Card
PROFINET

Parameter Name	Parameter Value
Mounting	built-in
Applications	for machines for food for gas for packaging for wastewater
Protection class	IP20
Other characteristics	modular integrated built-in for manufacturing automation IP20
Power (W)	4000 - 4000
Intensity (A)	9.5 - 9.5
