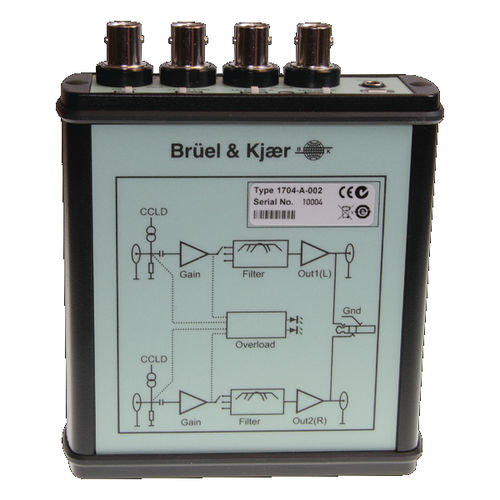

2-CHANNEL CCLD SIGNAL CONDITIONER

Type 1704-A-002 CCLD Signal Conditioner designed with built-in battery recharger, enabling in-situ conditioning for your measurements in the field and the lab.

The Type 1704-A range of conditioners provides CCLD (Constant Current Line Drive) power for CCLD transducers such as microphones, accelerometers, and tachometer probes.

The 2-Channel Signal Conditioner includes features like a built-in, rechargeable battery optimised for in situ measurements.

USE SCENARIOS

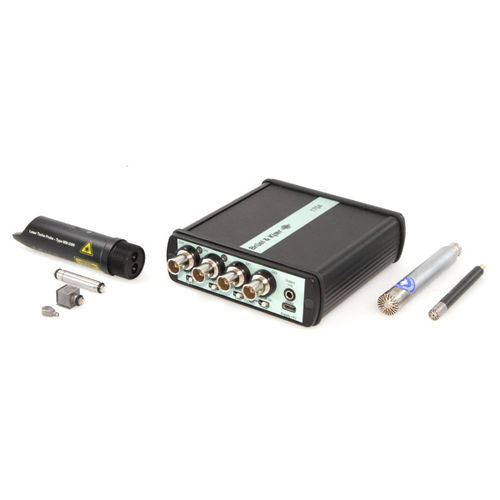

Provides power for microphones, accelerometers and other CCLD-compatible transducers
Industry standard CCLD power is compatible with wide range of DeltaTron® and ICP® sensors

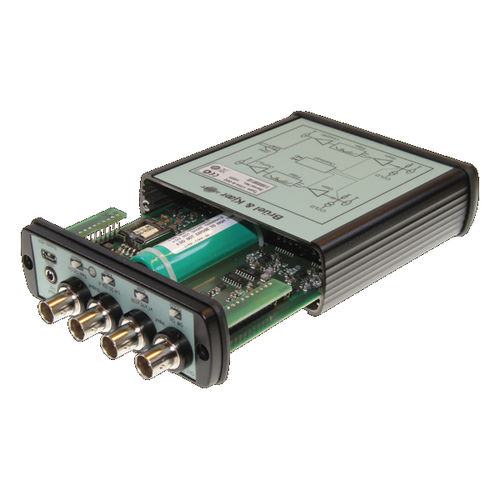

Built-in Li-Ion battery and charger – ready to measure when you are
Powered and charged from PC's USB connector (with optional cable): no need for an extra mains adaptor
Wide range of gains (×1, ×10 and ×100) amplify signal before A/D to improve noise floor
Selectable acoustic bandpass and A-weighting (type 0) filters remove unwanted frequencies

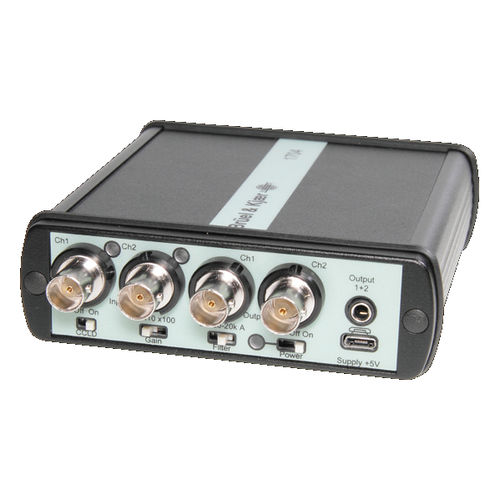

Switches to quickly change settings and LEDs for fast verification of configuration
Both 2 × BNC and 3.5 mm stereo output connectors provide options to connect to A/D converters or sound cards

CCLD conditioning has advantages because it allows the transducer power to be delivered using the same coaxial cable that the transducer uses to return the measurement signal. This reduces cabling costs and improves noise immunity compared to multi-conductor cables.

Parameter Name	Parameter Value
Format	built-in
Options	amplifier USB
Applications	for piezoelectric transducers for accelerometers
