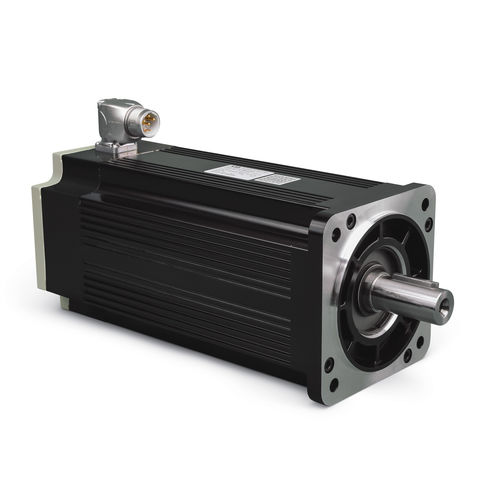

AC Brushless Servo HDS motors
The HDS series has a 10 pole design which provides more torque and less cogging for superior performance. Whether your need is positioning, speed, or efficiency, HDS series provides performance and reliability.

Features
• Segmented lamination design increases efficiency and reduced resistance, minimizing power loss and heat.
• IP65 rating except for face, optional seal available for total IP65.
• Encapsulated winding for greater heat dissipation and ingress protection.
• Multiple feedback options available: resolver, incremental encodes & absolute encoder.
• Available with two separate connectors for power and feedback or one connector for both power and feedback on absolute feedback (DSL) models.
• Windings are rated for 155° C.
• CE/cURus certification.

Common applications
• Cut-to-length
• Flying shear
• Machining
• Labeling
• Material handling

Common industries
• Packaging
• Food & beverage
• Manufacturing
• Medical

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	230 - 230
Protection class	IP65 IP54
Number of poles	10-pole
Cooling mechanism	air-cooled water-cooled
Applications	with built-in encoder packaging machine food for medical applications
Other characteristics	performance
Power (W)	190 - 20000
Intensity (A)	1.3 - 39
Torque (Nm)	0.6 - 93
Rotational speed (rpm)	1500 - 1500
