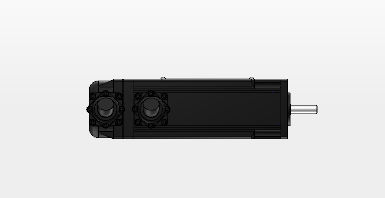

4-POLE SINUSOIDAL BRUSHLESS MOTOR WITH RESOLVER.

4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Winding class F. IP65 protection according to CEI EN 60529 standards. Feedback with 2 pole resolver.
Reduced clearance bearings with special grease for high temperatures.

On request a 24 Vdc NC brake (normally closed) with permanent magnets may be supplied. It is identified by the letter K (BSK).

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	24 - 24
Protection class	IP65
Number of poles	4-pole 2-pole
Power (W)	75 - 134
Torque (Nm)	0.12 - 1.02
Rotational speed (rpm)	4000 - 4000
Operating temperature (°C)	0 - 40
