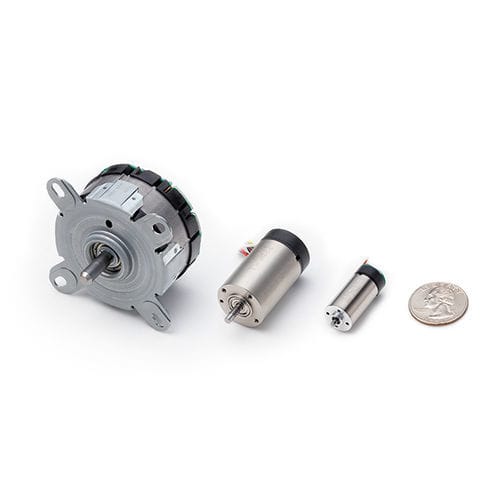

Brushless Servomotors
Canon's brushless servomotors are compact in size and provide high output power. Two types are offered with quick response and smooth rotation. Various custom options can be incorporated to fit your applications.

New DC Brushless Servomotor BN13
7.6W High Power in Small Size(Φ13×22㎜)
Low Vibration / Low Torque
High-precision positioning
(Encoder Available）
Excellent design with vibration resistance and anti-shock.

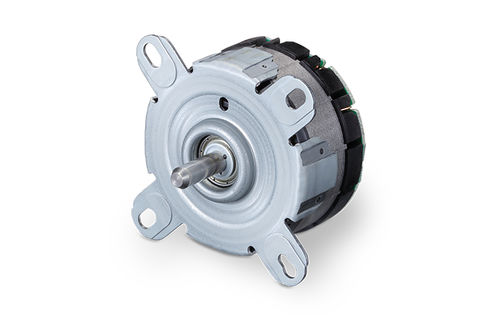

New Brushless DC Servomotor BY54
High efficiency (Max. 80% Rated 75%)
High torque
Low noise
smooth rotation
Accurate positioning

New Brushless DC Servomotor BN22A
Higher Starting Torque in Φ22×38mm size
Low inertia / cogging less
High-precision positioning
Wide operating range
Excellent design with vibration resistance and anti-shock.

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 24
Configuration	compact
Other characteristics	custom high-power
Power (W)	7.6 - 7.6 8.7 - 8.7 30 - 30
Torque (Nm)	0.0034 - 0.0034 0.0147 - 0.0147 0.0902 - 0.0902
Rotational speed (rpm)	3300 - 3300
Diameter (mm)	13 - 22
