AW-Motors

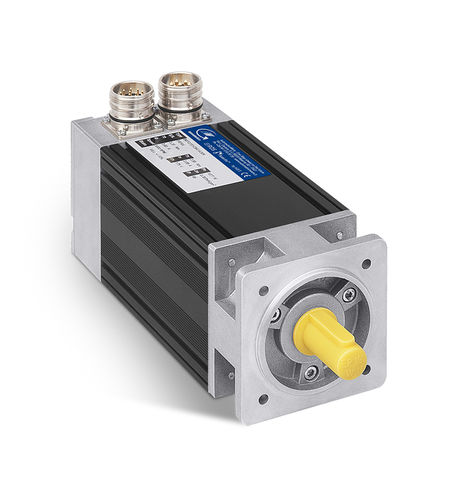

Brushless servo-motors in square case from 55mm to 264mm per execution
Power from 150W to 12.8 KW for stall torques from 0.48Nm to 400Nm.
Standard rated speed from 3000rpm, available on request up to 6000rpm and for various winding voltages.
Incremental encoder or resolver transducer
AWM-B05
High dynamic servomotors with natural air cooling. Mechanics with 55mm square case flange and three body lengths.
S1 service torques from 0.48 Nm up to 1.1 Nm.
Electrical specifications (power supply 60VDC).
AWM-B07
High dynamic servomotors with natural air cooling. Mechanics with 75mm square case flange and four body lengths.
S1 service torques from 1.1 Nm to 3.2 Nm.
Electrical specifications (power supply 60VDC).
AWM-B10
High dynamic servomotors with natural air cooling. Mechanics with 100mm square case flange and five body lengths.
S1 service torques from 3.2 Nm up to 9 Nm.
Electrical specifications (230VAC power supply).
AWM-B14
High dynamics servomotors with natural air cooling. Mechanics with 142mm square case flange and six body lengths.
S1 service torques from 9 Nm to 34 Nm.
Electrical specifications (400VAC power supply)
AWM-B20 Servoventilato
High dynamic servomotors with forced air cooling. Mechanics with flange in 200mm square case and 4 body lengths. Stall torques in S1 servo-ventilated service from 47 to 150Nm.
AWM-B26 Servoventilato
High dynamic servo motors with forced air cooling. Mechanics with flange in 264mm square case and casing for cooling on 285mm square and 4 body lengths. Stall torques in S1 servo-ventilated service from 122 to 445Nm.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
|
| Type |
brushless
|
| Voltage (V) |
230 - 60
|
| Protection class |
|
| Configuration |
permanent magnet
|
| Cooling mechanism |
air-cooled
|
| Applications |
with built-in encoder
|
| Other characteristics |
low-inertia
|
| Power (W) |
|
| Torque (Nm) |
0.48 - 400
|
| Rotational speed (rpm) |
3000 - 3000
|
| Diameter (mm) |
55 - 264
|
