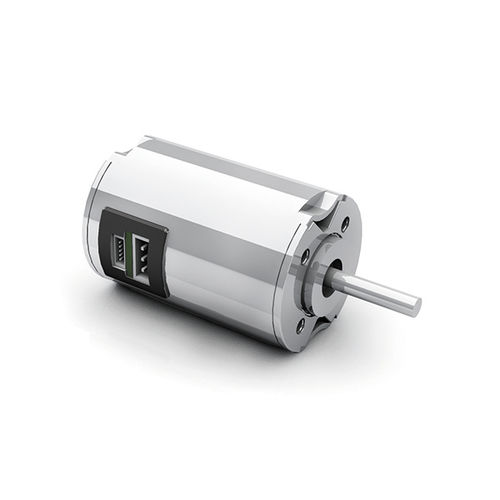

» Highly dynamic 3-phase BLDC motor with neodymium magnet
» Version with integral commutation electronics
» Selectable rotational direction
» The speed of rotation of the motor is unregulated, as with conventional DC motor; it depends solely on the supply voltage and the load
» Can be combined with encoders, brakes and gearboxes within our modular system

Nominal voltage - V:24
Nominal current - A:0.85
Nominal torque - Ncm:2.58
Nominal speed - rpm:3920
Nominal power - W:10.6

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 12
Configuration	modular
Number of poles	8-pole
Other characteristics	with integrated controller
Power (W)	10.6 - 10.6 11.1 - 11.1
Torque (Nm)	0.026 - 0.026 0.045 - 0.045
Rotational speed (rpm)	3920 - 3920
