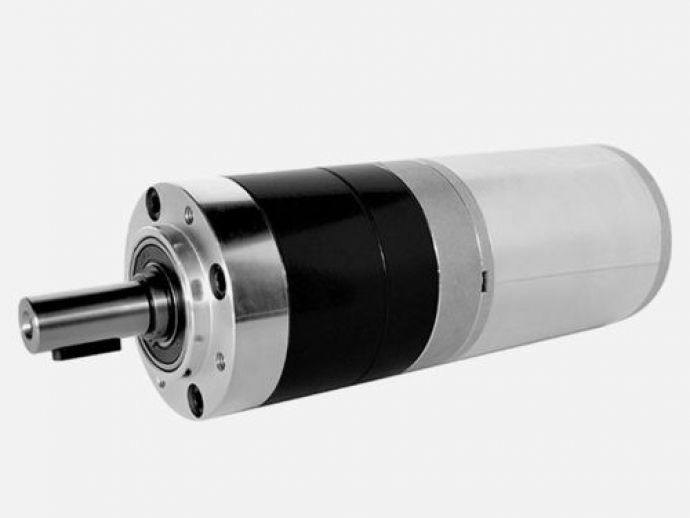

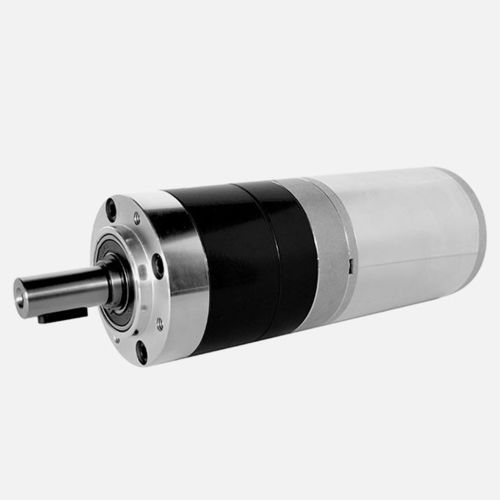

Brushless DC gear-motor 60BYA Series

Brushless DC gear-motor 60BYA Series

Brushless DC gear-motor 60BYA Series

About


GENERAL SPECIFICATION
Voltage:24 VDC
Phase:3
Poles:4
Line to line resistance:0.15±10%ohms
Line to line inductance:0.33±20%mH
Rated current:12A
Rated output power:200W
No-load speed:4000 rpm
Class insulation:B
Gear Ratio:1:44.69
Output torque:23 N.m
Output speed:67 rpm



PARAMETERS

Parameter Name Parameter Value
Motor type
  • three-phase
  • brushless DC
Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power (W)
100 - 500
Voltage (V)
24 - 24
Torque (Nm)
20 - 50
Other characteristics
4-pole
