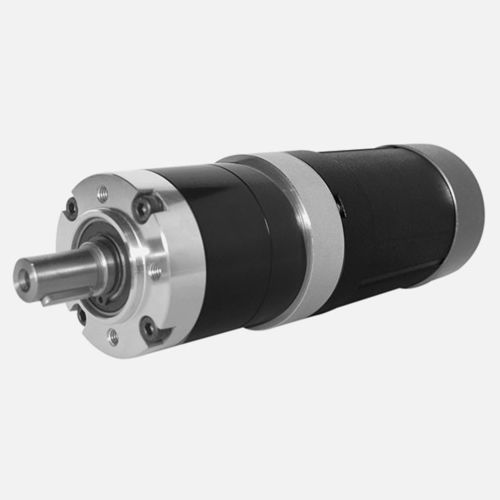

GENERAL SPECIFICATION
Voltage：24 VDC
Phase：3
Poles：4
Line to line resistance：0.25±10%ohms
Line to line inductance：0.73±20%mH
Rated current：8.2A
Rated output power：138W
No-load speed：4000 rpm
Class insulation：B
Gear Ratio：1:33.92
Output torque：12 N.m
Output speed：88.5 rpm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
|
| Type |
planetary
|
| Shaft orientation |
coaxial
|
| Power (W) |
100 - 500
|
| Voltage (V) |
24 - 48
|
| Torque (Nm) |
0.2 - 0.5
|
| Other characteristics |
4-pole
|
