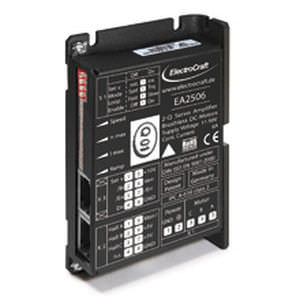

Brushless DC drive EA25

Brushless DC drive EA25

Brushless DC drive EA25

About


EA25 : ElectroCraft CompletePowerâ„¢ Drives
Technology used: Brushless, Speed/Torque Control
No. of Quadrants: 2
Nominal Current: 6A

For BLDC Motors. Up to 300W.
This two-quadrant brushless DC speed control is fully enclosed in an extremely small rugged aluminum case which can be DIN-rail mounted or panel mounted for easy integration. The drive comes with an adjustable ramp generator for controlled acceleration and a torque mode. Simple DIP switches control the mode of operation. This drive can provide 6 A of nominal current and can be powered by an 11-50 VDC range of supply voltage. The drive is protected against reversing, over-current, over-temperature and incorporates state of the art MOSFET technology for maximum efficiency. Connectivity is tool-free with RJ-45-CATs connectors for control/feedback inputs and push-type terminals for supply power and motor connections.



PARAMETERS

Parameter Name Parameter Value
Type
  • brushless
  • 2-quadrant
Other characteristics
direct torque control
Power (W)
300 - 300
Intensity (A)
6 - 6
