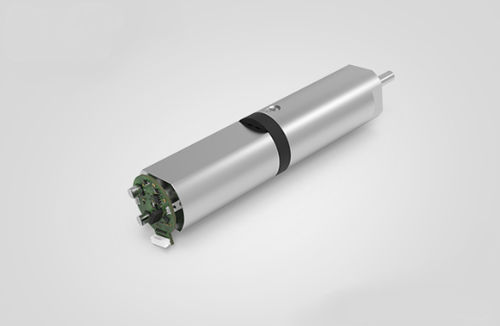

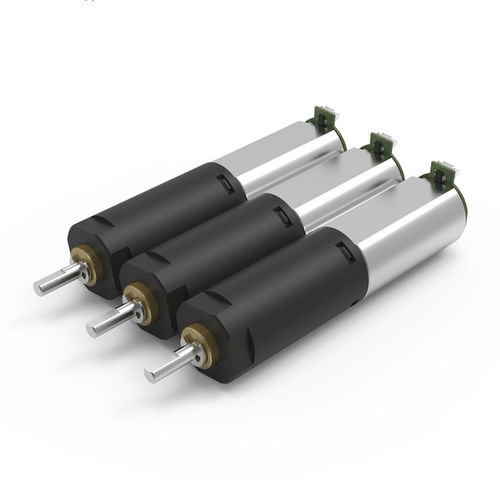

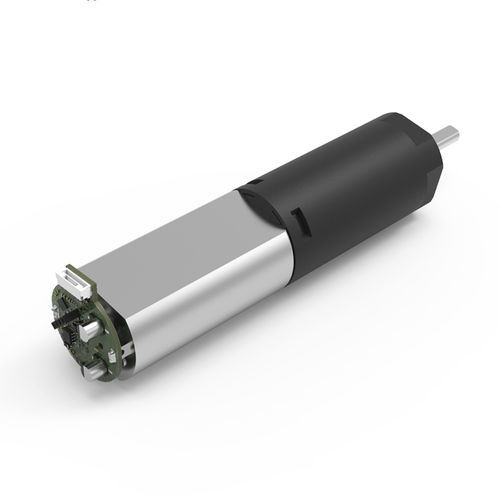

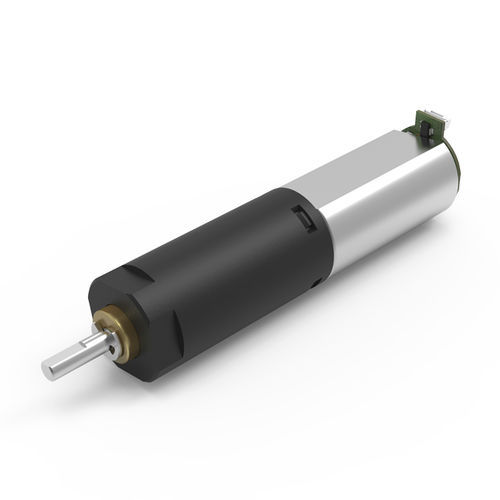

Brushed gear-motor ZWBPD008008 series

Brushed gear-motor ZWBPD008008 series

Brushed gear-motor ZWBPD008008 series

About


Voltage : 3-12V

Load Current : 150mA

Rated Speed : 14-3111 rpm

Rated Torque Max. (gf.cm) : 50-750gf.cm

Rated Torque Max. (mNm) : 4.90-73.55mNm

Overall Length : 23.1-31.2mm



PARAMETERS

Parameter Name Parameter Value
Motor type
  • DC
  • brushed
Type
planetary
Shaft orientation
coaxial
Shaft configuration
pinion shaft
Torque (Nm)
0 - 0.1
Performance
high-speed
Product applications
  • for medical equipment
  • for automobiles
  • for home appliances
  • for robotics
  • electronic equipment
  • for power tools
Other characteristics
  • custom
  • two-stage
  • three-stage
  • single-stage
  • four-stage
  • modular
Gear ratio (unit)
3.6 - 809.1
Operating temperature (°C)
-20 - 85
