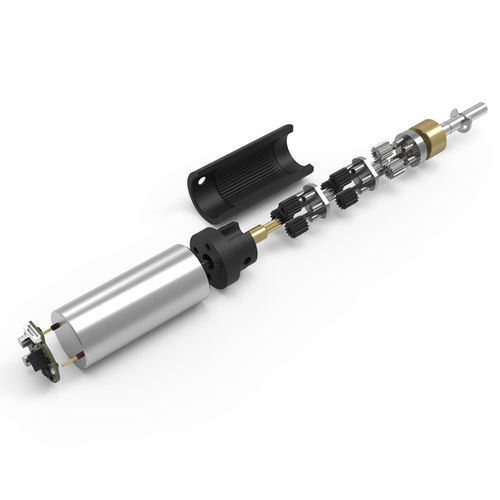

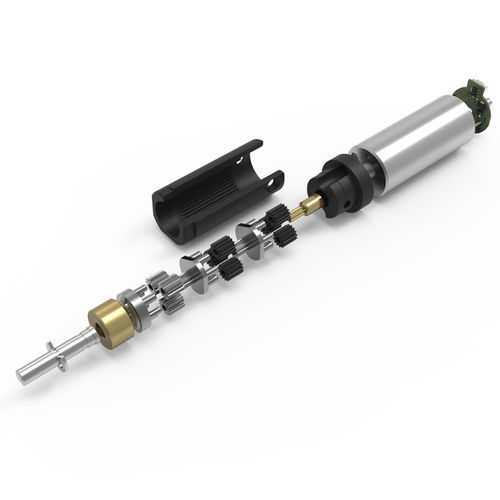

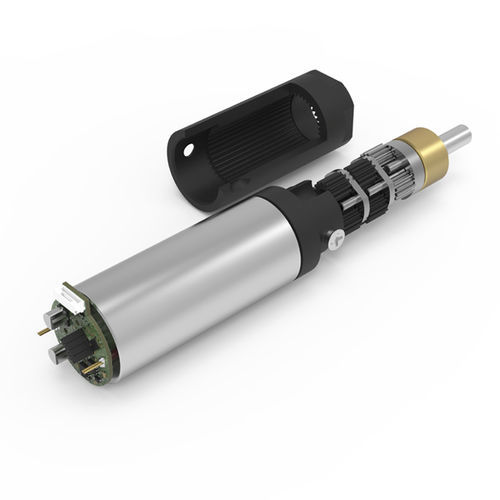

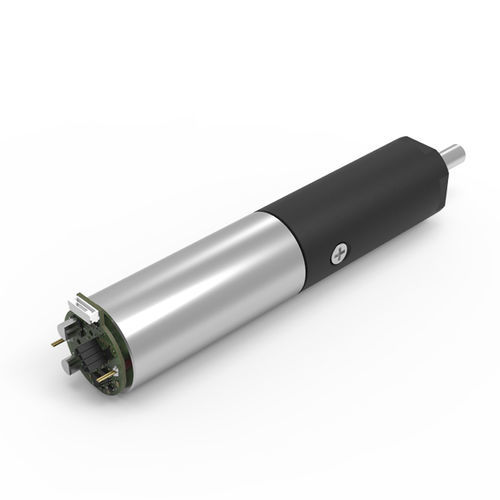

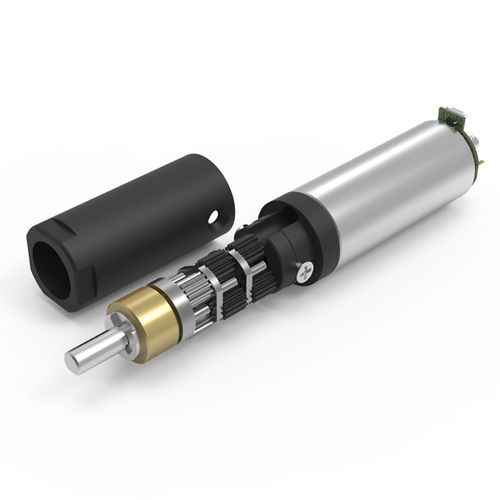

Brushed DC Gear Motor
ZHAOWEI provides many Brushed DC Motor samples for customers to reference, and with a specific reduction ratio of the gearbox or the corresponding encoder, rapid integration and design of DC Motor Solutions that meet or exceed customer needs. Our brushed DC Motors can be customized in the range of 1.5 ~ 36V and 40~100,000rpm, and are fully used in the fields of smart hom e appliances, automotive, Telecommucation,Consumer Electronics,medical healthcare,robotics and power tools,

Customization Range:

Additional voltage types
Connecting cables (PTFE and PVC) and connectors
Configurable shaft length and second shaft end
Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenters
Extended temperature range
Vacuum compatibility (e.g., 9-5 Pa)
Modifications for high speed and / or high load applications
Modifications for motors with increased electrical or mechanical tolerance requirements

Parameter Name	Parameter Value
Motor type	three-phase brushed
Type	planetary
Shaft orientation	coaxial
Shaft configuration	solid-shaft
Power (W)	10 - 50 0 - 10
Torque (Nm)	1 - 5 5 - 10 0.5 - 1
Performance	high-torque low-noise high-efficiency
Product applications	industrial for automation for medical equipment
Certifications	CE OHSAS 18001 ISO
Other characteristics	compact low-noise custom high-torque
