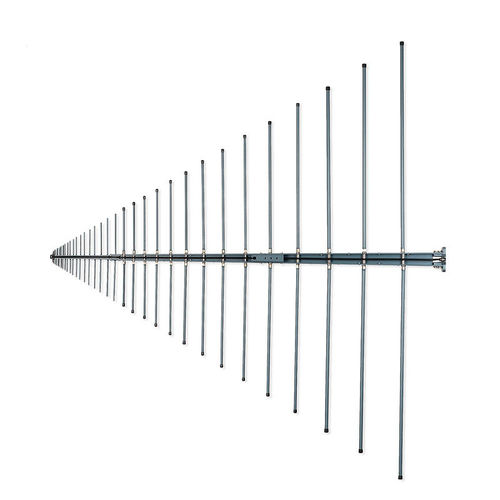

Broadband antenna R&S®HL033

Broadband antenna R&S®HL033

Broadband antenna R&S®HL033

About


Log-periodic antenna for RF signal detection and measurement

The linearly polarized R&S®HL033 log-periodic broadband antenna provides general broadband transmission and reception in the frequency range from 80 MHz to 2000 MHz. Together with a test or monitoring receiver, the antenna can be used in a wide variety of applications, such as field strength measurements or determining direction of incidence and signal polarization. The R&S®HL033 can also act as a transmit antenna over the entire frequency range.

Key facts

Extremely broadband
Only one antenna covers a wide frequency range
Low frequency-dependence for radiation patterns and input impedance
Usable as transmit antenna
Highly weatherproof



PARAMETERS

Parameter Name Parameter Value
Network
  • radio
  • broadband
Type
log-periodic
Other characteristics
weatherproof
Applications
measurement
Frequency (Hz)
80000000 - 2000000000
Gain (dB)
6.5 - 6.5
