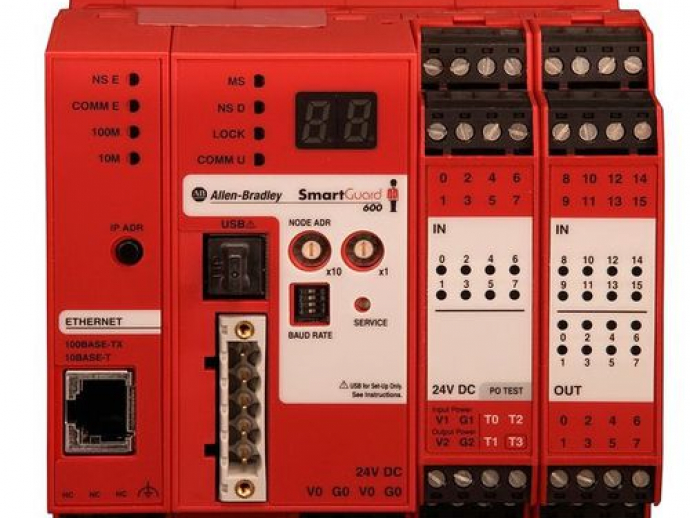

Our Bulletin 1752 SmartGuard™ 600 Controllers with Safety feature 16 safety-rated inputs, 8 safety-rated outputs, 4 pulse test sources and an optional EtherNet/IP™ port. Each controller also includes a DeviceNet™ connection to support both standard CIP and CIP safety. You can configure and program on EtherNet/IP, on DeviceNet or through the built-in USB port. These small, cost-effective intelligent controllers can perform safety interlocking between GuardLogix® or other SmartGuard safety controllers.
• Ideal for mid-level safety applications that are too complex for safety relays, yet too simple for full-sized safety PLCs
• Integrates with Guard I/O™ modules to expand the number of safety devices you can control
• Provides data to standard PLCs and HMIs through EtherNet/IP™ or DeviceNet™
• Lets you configure and program through RSNetWorx™ for DeviceNet software (required for EtherNet/IP controller)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
box
|
| Input/output |
with integrated I/O, 16-I, 8-O
|
| Network |
Ethernet
|
| Applications |
safety
|
