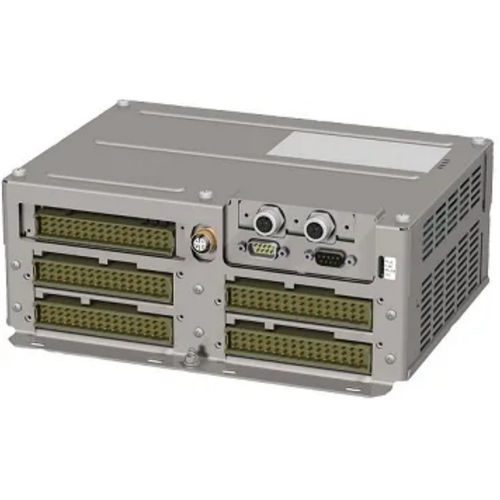

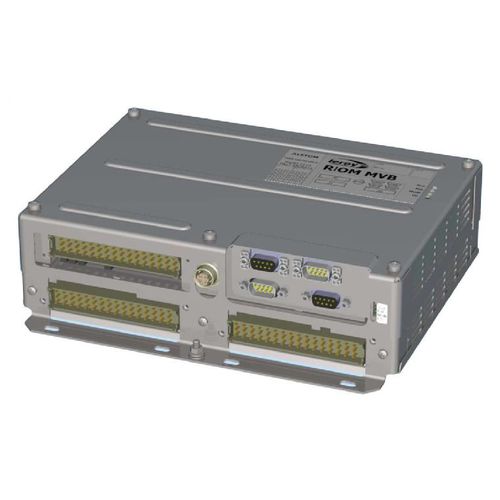

Leroy Automation offers programmable computers in accordance with the EN50155 / IEC 60571 standard to perform the control functions of a TCMS.

They are based on the generic platform “RIOM”.

The RIOM can be operated as:

-a central computer (VCU )
-a communication gateway between fieldbuses and the Ethernet network
-a local automation system to control subsystems (HVAC, doors, braking, power-packs, fire safety, …)

The RIOM is designed to be able to be integrated into SIL2 architectures.

MAIN FEATURES

The range includes many models according to :

-The power supply : 24Vdc, 48Vdc, 110Vdc
-The equipment of the central unit
-The number and type of communication ports
-The programming mode : PLC programming or C-programming
-The number of digital inputs/outputs
-The number of analog inputs/outputs

CENTRAL UNIT

-Processor : PXA
-RAM : 64 Mo; Flash ROM : 32 Mo
-ROM NAND : 1 Go
-Real time clock

MOUNTING

-Dimensions :
-with one I/O board : W x H x D = 252 x 217 x 74 mm
-with two I/O board : W x H x D = 252 x 217 x 100 mm
-Inputs/outputs and power supply wiring :
-DIN41612 Connectors F48 male class 1
-Ethernet wiring : M12 female D code female
-Serial link wiring : Subd 9 points

POWER SUPPLY

-24cVdc model : plage 14.4V-30V
-48Vdc model : plage 25.2V-60V
-110Vdc model : plage 50V-137V
-Accepts voltage variations according EN50155 chapter 5.1.1
-Protection against inversion of polarity, overvoltage, overcurrent.
-Power consumption <50W (depends on the configuration)

Parameter Name	Parameter Value
Type	box on-board
Input/output	analog inputs, digital input, 4-I, digital outputs, analog outputs, relay outputs, 4-O
Network	Ethernet
Other characteristics	with real-time clock
Applications	safety for railways for HVAC
