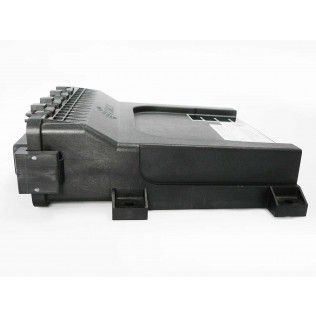

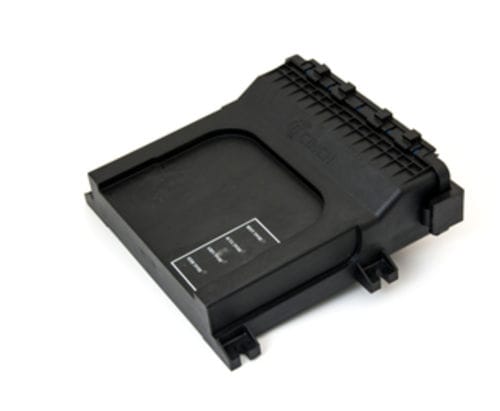

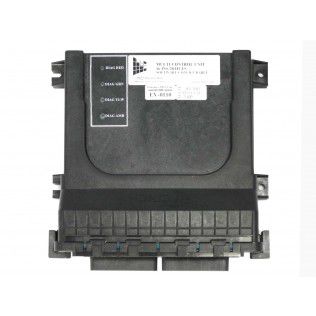

Robust, fully waterproof and ultra-versatile, the hydraulic control unit can manage high precision valve types, including hydrostatic transmissions (for vehicles or off-road machines). This state-of-the-art system allows to control complex custom hydraulic systems. Offered with J1939 firmware or CANopen for slave applications, the open architecture of the unit allows designers to create their own software for master applications.

Designed in accordance with SAE J1455, J1113
IP67 rated enclosure
Low consumption (sleep) mode
Pulse width modulation (PWM)
2 CAN 2.0b ports
Diagnostic LEDs
16 inputs, software configurable
28 outputs, software configurable
Voltage reference

Parameter Name	Parameter Value
Type	box
Input/output	with integrated I/O
Network	CAN bus CANopen
Applications	for hydraulic valves
