The new SmartPLCs are used as compact PLCs and assume control tasks, data logging or are designed for use as gateway for Industry 4.0 applications. The creation of the PLC program and the HMI user interface is based on HTML5 and is possible with any standard web browser per PC or tablet. For this, the function diagram programming (FuP) is available as a web application on the PLC. No external engineering tools are required - the PLC program and the development environment are saved on the PLC. The HMI interface is designed as a web visualization and can be operated with any HTML5 browser, even via tablet or smartphone. Access is also possible with the Industrial Computers or PLC operator terminals of the XS series.

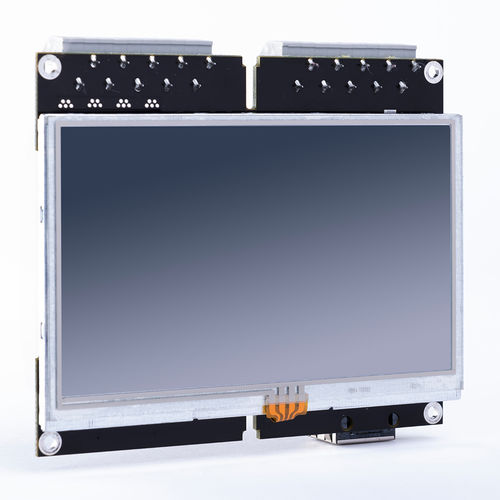

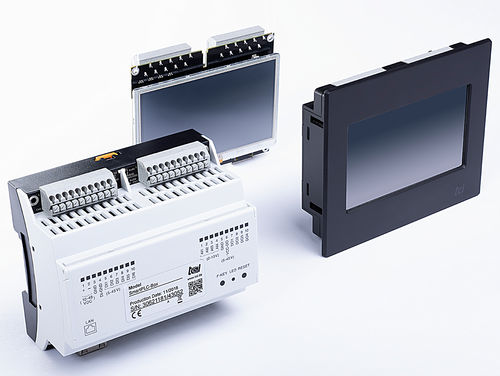

There are two types with integrated 4.3-inch touch display available and another box variant for mounting on the DIN rail.

Common features
programming via standard browser, without external engineering tools
PLC and HMI in one device
remanent memory, protects the data in case of power failure
fully functional PLC
remote control, data logging and safing in the cloud

Interfaces and I/O
power input 24 VDC
ethernet
4 analog Input: 0~10V, 10 bit
4 digital Output: 24V 0.5A
6 digital Input, 24V

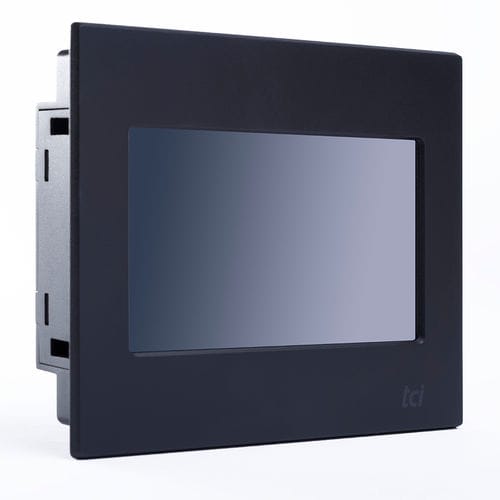

SmartPLCTouch 4,3" TFT panel mount

All-in-one: PLC with integrated visualisation
4,3-Zoll-Touchdisplay TFT analog-resistive
panel mount
protection class front IP 54, rear side IP 20

Parameter Name	Parameter Value
Type	box compact integrated DIN rail
Input/output	digital input
