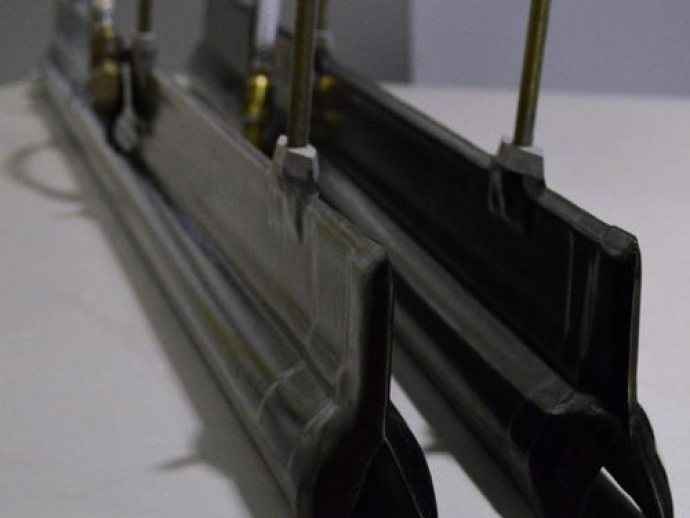

The MCB inflatable bottle gripper range is used for long or short neck bottles. Its dual-ring profile means that it can cover a wider range of diameters. It is widely used to avoid changing grippers between two types of bottles. Only the spacing between the grippers need be changed.

Two lengths are available as standard: 1320 mm and 1460 mm. A food-safe coating can be added on request. Depending on your requirements and your pallet loader heads, the inflatable rings will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.

APPLICATIONS
Gripping bottles
ADVANTAGES
Handy to use
•Single air inlet
•Fast inflation
•Adaptable material
Efficiency
•Thin empty thickness
•Reduced size
•Uniformly distributed thrust
•Adapts to different bottle models
Reliability
•No mechanical parts
•No maintenance
•Long service life
DETAILED INFORMATION
•Material: NPVC coated fabric
•Manufacturing technique: hot vulcanization in a vacuum autoclave
•Standard lengths: 1320 and 1460 mm lengths
•Min./Max. diameter: 12 to 45 mm
•Inflation: air
•Temperature resistance: up to 50°C
•Max. inflation pressure: 1.2 bar
•Thickness: 18 to 22 mm
•Material options: food safe, cloth reinforcing, etc.

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	2-jaw
Application	for the food industry for bottles
Options	inflatable
Stroke (mm)	24 - 90
