Bottle gripper MC/ML series

Bottle gripper MC/ML series

Bottle gripper MC/ML series

About


The standard MC/ML range of inflatable bottle grippers is dedicated to pallet loading long neck bottles like Bordeaux and Burgundy wines, or others. Many diameters are available to adapt to the bottle volume. The standard lengths are 1320 mm and 1460 mm. Supplied with air, these inflatable rings are used to handle layers of bottles by pinching the bottle necks. Their wide contact surface and soft textile finish that comes as close as possible to the bottle collar avoids any tipping.

To meet quality requirements, the grippers are available with food-safe material coating on request. Depending on your installation, the grippers will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.
APPLICATIONS

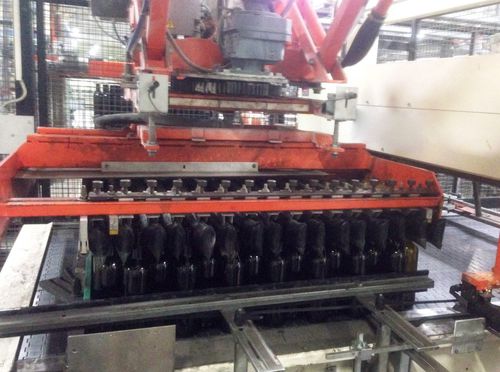

Loading pallets with Bordeaux and Burgundy type bottles
Emptying pallets of Bordeaux and Burgundy type bottles
Previous
Next
ADVANTAGES
Handy to use
•Single air inlet
•Fast inflation
•Adaptable material
Efficiency
•Thin empty thickness
•Reduced size
•Uniformly distributed thrust
•Adapts to different bottle models
Reliability
•No mechanical parts
•No maintenance
•Long service life
DETAILED INFORMATION
•Material: NPVC coated fabric
•Manufacturing technique: hot vulcanization in a vacuum autoclave
•Standard lengths: 1320 and 1460 mm lengths

•Inflation: air
•Temperature resistance: up to 50°C
•Max. inflation pressure: 1.2 bar
•Thickness: 7.5 to 8.5 mm
•Material options: food safe, cloth reinforcing, etc.



PARAMETERS

Parameter Name Parameter Value
Operation
pneumatic
Type
parallel
Number of jaws
2-jaw
Application
for bottles
Options
inflatable
Stroke (mm)
20 - 100
