The module maintains the minimum return flow temperature and maximum temperature spread between supply and return flow.

For maintaining the necessary return flow temperature
Quick and easy installation
Reliable adherence to operating conditions

Overview
The return flow temperature in a hot water generator can be safeguarded by means of temperature maintenance or temperature boosting.

Construction

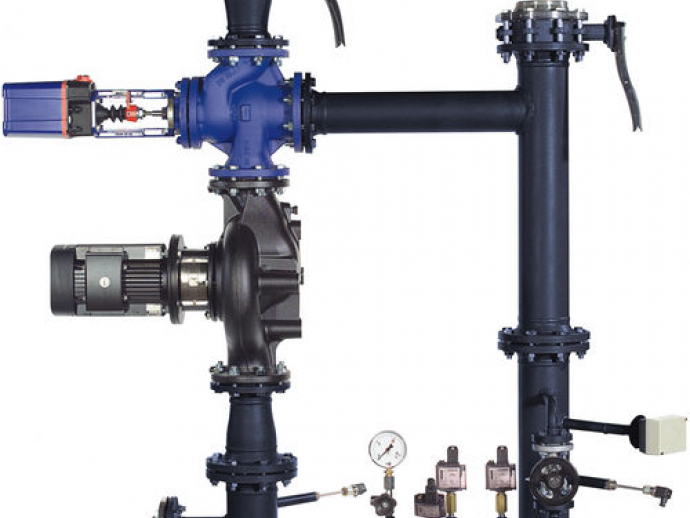

All individual accessory parts such as the supply flow adapter piece with safety equipment, return flow adapter piece, supply and return flow fittings, circulation pump and motorized three-way valve are preassembled to form the ready-to-install RTS module.

Equipment level
Return flow temperature maintenance consists of: Boiler circuit pump, Three-way control valve, Return temperature control, Supply flow/return flow shut-off valves
Return flow temperature boosting consists of: Admixing pump, Shut-off valve suction side/pressure side, Non-return damper pressure side, Motor shut-off valve boiler return flow, Shut-off valve boiler supply flow

Parameter Name	Parameter Value
Use	for boilers
