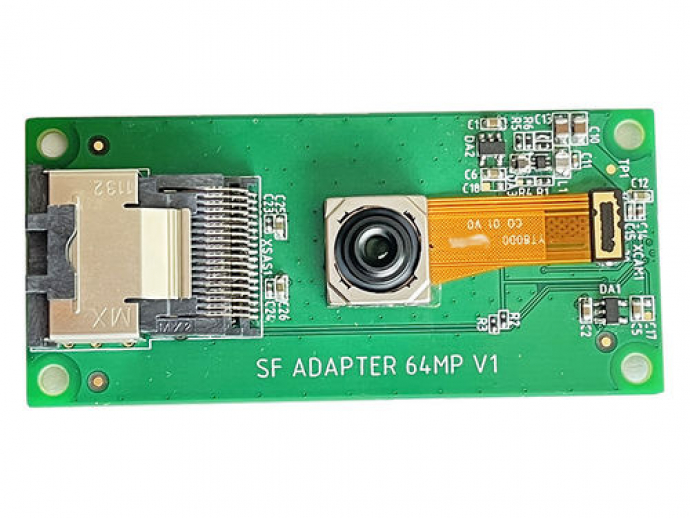

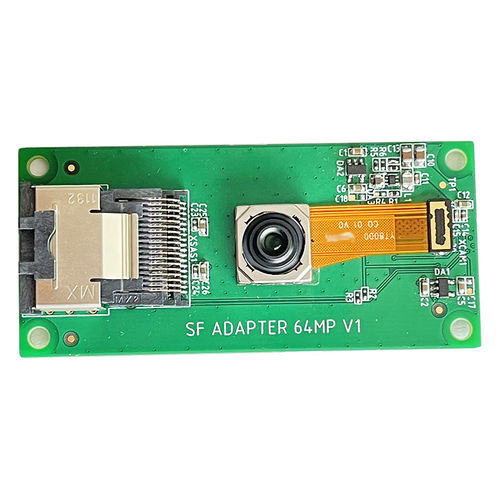

DAB-Embedded BV developed the adapter board for Sony IMX686 RGB camera (Module with optics + Autofocus engine). The adapter is ready for while NXP i.MX8 MQ, MM, Nano, MPlus, QuadMax evaluation kits.
The adapter has all required power supplies on board, 24MHz crystal oscillator, 4x MIPI CSI-2 lanes.
Camera max resolution, 9248 (H) × 6944 (V) @ 10 fps (Bayer 10-bit/8-bit RAW or COMP8).

DAB-Embedded BV also made Linux device driver for IMX686 camera and SDK for AutoFocus control system.
(Current module has 79.8° DFoV and F.no=1.89, No lens distortion)

List of Sony IMX686 camera modes supported by driver:
- Full resolution, 64 Mpix, 9248 x 6944 @ 10 fps
- 4K2K, 8 Mpix, 3840x2160 @ 120 fps
- 1080p, 1920x1080 @ 240 fps
- 720p @ 410 fps

Additionally, driver supports:
- Horizontal and Vertical image flip;
- HDR mode;
- PD Autofocus
- QBC

Parameter Name	Parameter Value
Applications	industrial medical machine vision for access control for microscopes for smart traffic education for research and development for retail for metrology for embedded devices for the automotive industry agriculture for UAVs for electronics for robotics for traffic monitoring
Technology	VGA QHD XGA+ QSXGA QXGA HDR
Function	image processing monitoring inspection
Spectrum	full-color
Sensor	CMOS
Interface	MIPI
Resolution level	HD, full HD, 4K
Other characteristics	board with rolling shutter high-speed high dynamic range OEM compact miniature autofocus high-performance
