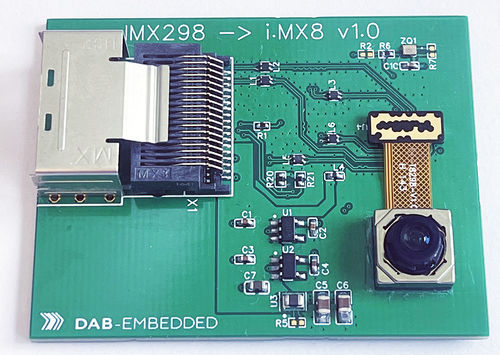

DAB-Embedded BV developed the adapter board for Sony IMX298 RGB camera (Module with optics + Autofocus engine). The adapter is ready for while NXP i.MX8 MQ, MM, Nano, MPlus, QuadMax evaluation kits.
The adapter has all required power supplies on board, 24MHz crystal oscillator, 4x MIPI CSI-2 lanes.
Camera max resolution, 4656 (H) × 3496 (V) @ 30 fps (Bayer 10-bit/8-bit RAW or COMP8).

DAB-Embedded BV also made Linux device driver for IMX298 camera and SDK for AutoFocus control system.
(Current module has 117° DFoV and F.no=2.25, No lens distortion)

List of Sony IMX298 camera modes supported by driver:
- Full resolution, 16 Mpix, 4656 x 3496 @ 30 fps
- 4K2K, 8 Mpix, 3840x2160
- 1080p, 1920x1080

Additionally driver supports:
- Horizontal and Vertical image flip;
- HDR mode;

Parameter Name	Parameter Value
Applications	machine vision for access control for smart traffic education for the automotive industry agriculture for robotics for research and development for traffic monitoring for UAVs
Technology	VGA QHD XGA+ QSXGA QXGA iHDR
Function	image processing
Spectrum	full-color
Sensor	CMOS
Interface	MIPI
Resolution level	HD, full HD, 4K
Other characteristics	board with rolling shutter high dynamic range small form factor miniature autofocus high-performance
